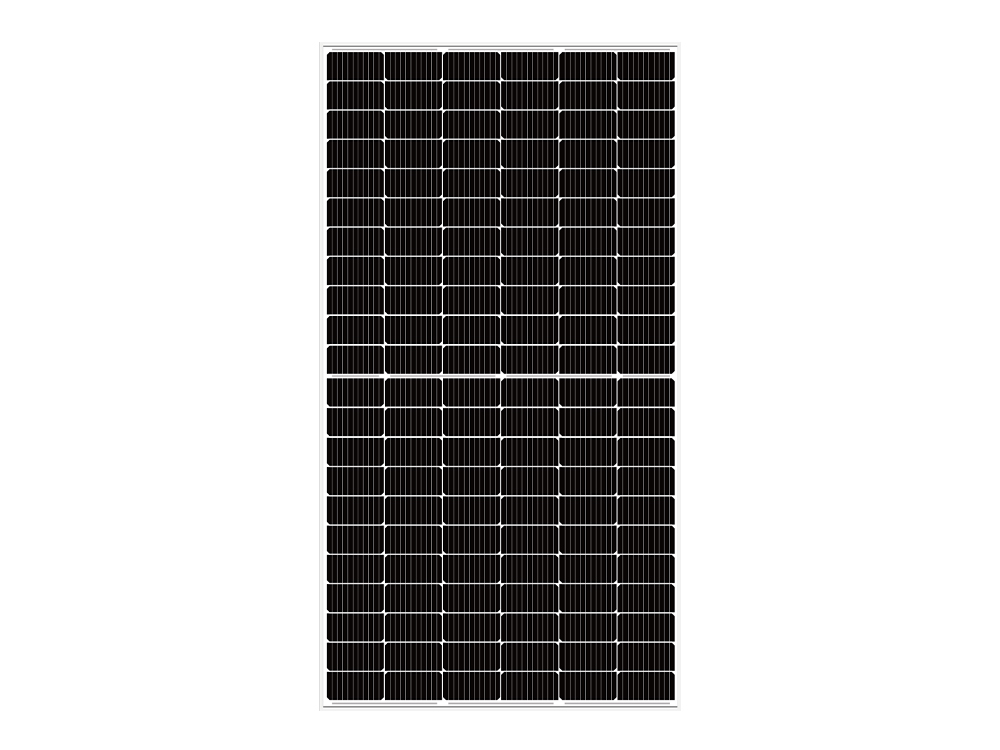

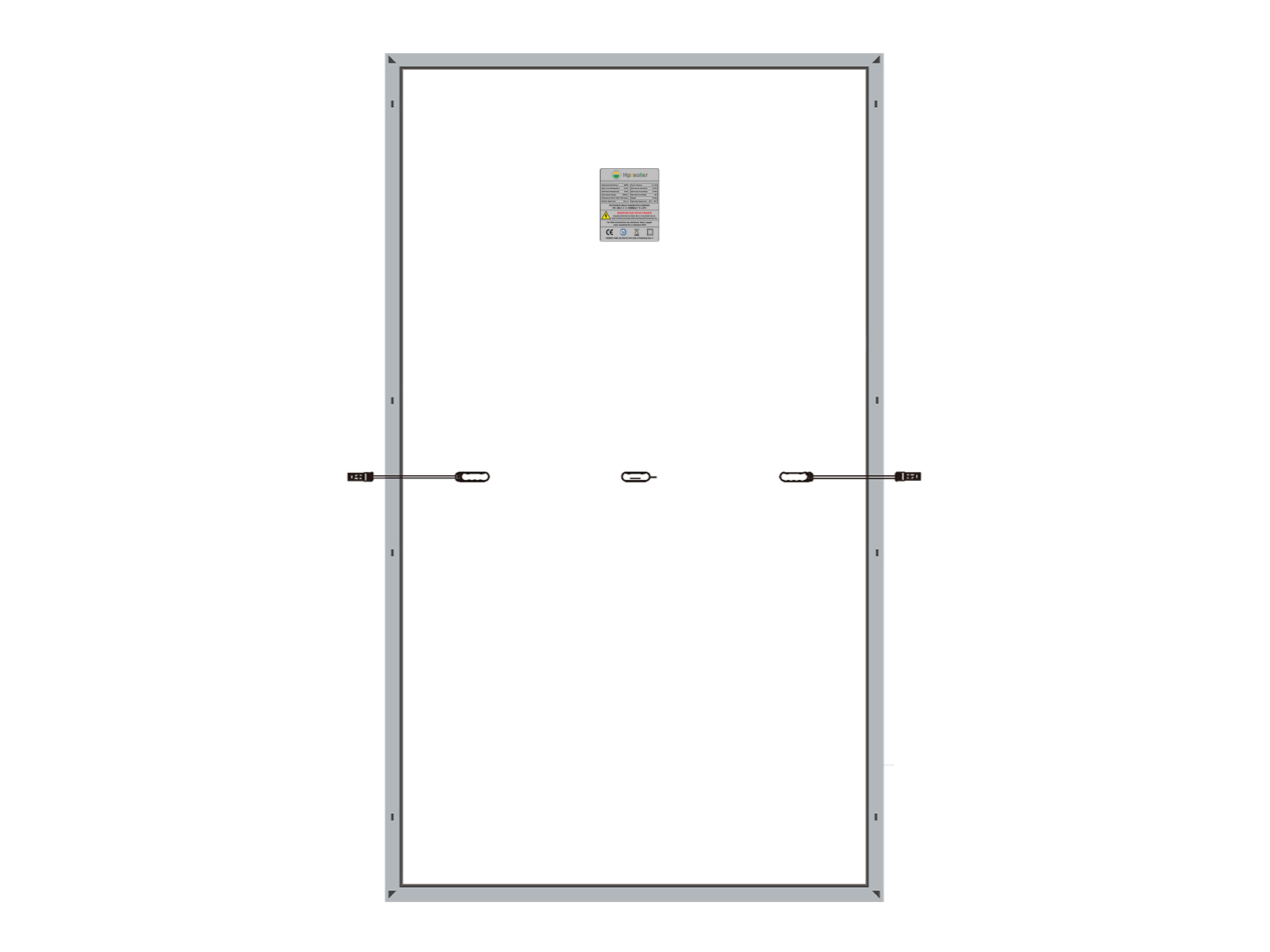

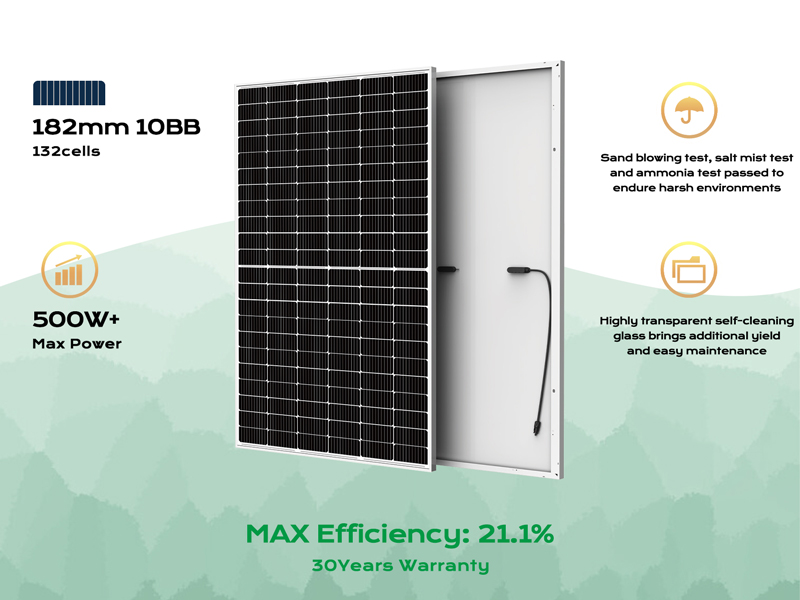

PERC Solar Module
Model: HP500W-PS
Dimension: 2094*1134*35mm
Single Glass White Frame Solar Panel
Power Range: 500W-515W
Choose excellence in solar technology with our solar panel for sale,
specifically designed for residential applications. Whether you opt for roof solar panels or solar panels for your home,
our competitively priced photovoltaic panels guarantee optimal performance.
Resistant to ammonia corrosion, blowing sand, and other harsh conditions,
our products, coupled with PID resistance, offer a sustainable solution with lower LCOE and reduced BOS costs.
ELECTRICAL DATA(STC) |
||||
MODEL |
HP500W-PS |
HP505W-PS |
HP510W-PS |
HP515W-PS |
Peak Power Watts-PMAX(Wp)* |
500 |
505 |
510 |
515 |
Power Output Tolerance-PMAX(W) |
0~+5 |
|||
MECHANICAL DATA |
2091*1134*35mm / 25kg |
|||
Maximum Power Voltage-VMPP(V) |
37.40 |
37.50 |
37.60 |
37.70 |
Maximum Power Current-IMPP(A) |
13.37 |
13.47 |
13.57 |
13.67 |
Open Circuit Voltage-Voc(V) |
45.38 |
45.48 |
45.58 |
45.68 |
Short Circuit Current-Isc(A) |
13.99 |
14.06 |
14.32 |
14.42 |
Module Efficiency(%) |
21.1 |
21.3 |
21.5 |
21.7 |
Solar Cell
Setting Standards with Solar Cells:
As pioneers in the solar industry, we prioritize excellence by incorporating solar cells from esteemed
tier 1 companies like Longi and TW Solar.
Enjoy the advantages of high efficiency, impeccable quality, and adherence to standardized practices.
Production Equipment
Efficiency Redefined:
Elevate your production capabilities with our cutting-edge production equipment,
exemplified by the third-generation line catering to Half Cut Solar Cells.
Boasting high automation, intelligence, and mechanization, our facility ensures minimal errors
and maximizes the consistency of each solar panel produced.
Auxiliary materials and accessories
Top-Tier Materials for Solar Success:
Success in solar panel production begins with the utilization of high-quality auxiliary materials in our components.
Follow our meticulously crafted standard production process, allowing for traceability at each stage.
Enjoy the dual safeguard of machine detection and manual checks, ensuring the highest quality.
