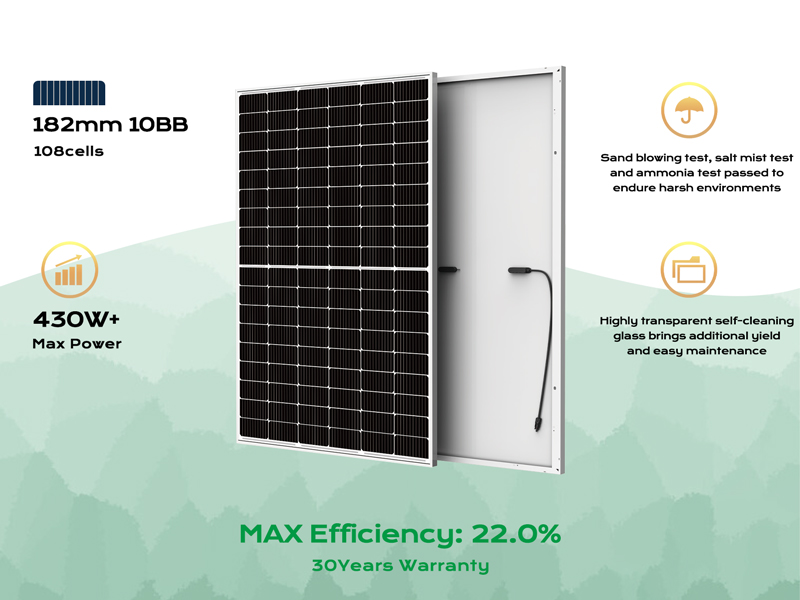

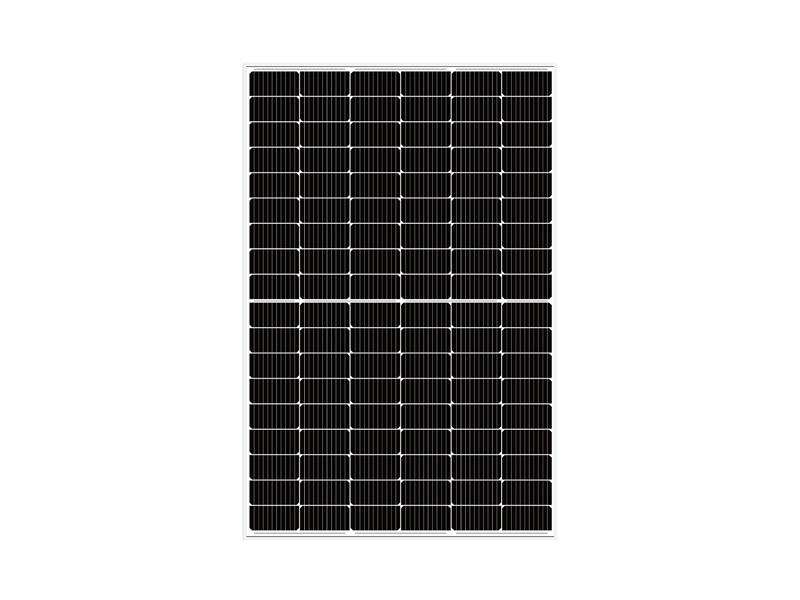

PERC Solar Module
Model: HP430W-PS
Dimension: 1722*1134*30 mm
Single Glass White Frame Solar Panel
Power Range: 400W-430W
Elevate your home's energy efficiency with our premium solar panel for sale.
Our photovoltaic panels, equipped with advanced technology,
are not only competitively priced but also resistant to harsh environmental conditions
such as salt, ammonia, and blowing sand.

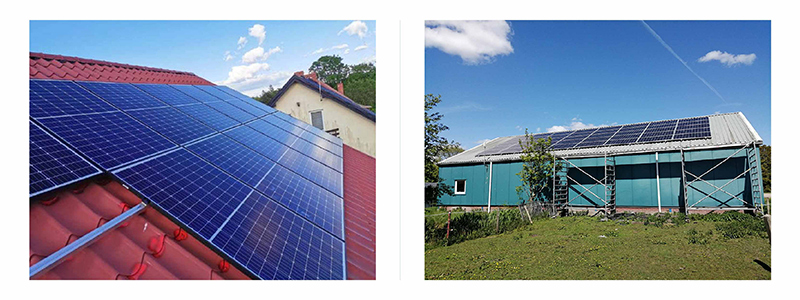

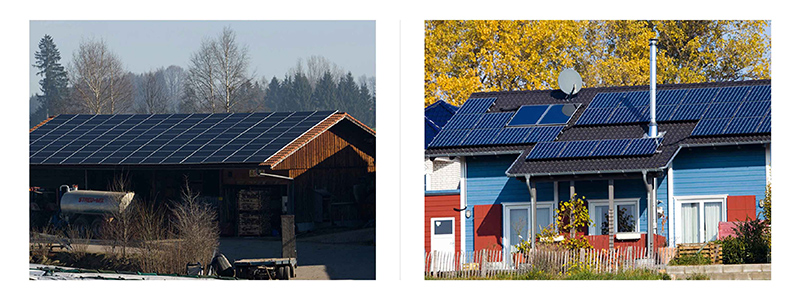

Whether you're considering roof solar panels or seeking solar panels for your home,
our products offer unparalleled durability.
ELECTRICAL DATA(STC) |
|||||||
MODEL |
HP400W-PS |
HP405W-PS |
HP410W-PS |
HP415W-PS |
HP420W-PS |
HP425W-PS |
HP430W-PS |
Peak Power Watts-PMAx(Wp)* |
400 |
405 |
410 |
415 |
420 |
425 |
430 |
Power Output Tolerance-PMAX(W) |
0~+5 |
||||||
MECHANICAL DATA |
1722*1134*30mm / 20kg |
||||||
Maximum Power Voltage-VMPP(V) |
31.01 |
31.21 |
31.45 |
31.65 |
31.85 |
32.05 |
32.25 |
Maximum Power Current-IMPP(A) |
12.90 |
12.98 |
13.04 |
13.12 |
13.19 |
13.27 |
13.34 |
Open Circuit Voltage-Voc(V) |
37.07 |
37.23 |
37.32 |
37.41 |
37.5 |
37.59 |
37.68 |
Short Circuit Current-Isc(A) |
13.79 |
13.87 |
13.95 |
14.03 |
14.11 |
14.19 |
14.27 |
Module Efficiency(%) |
20.5 |
20.8 |
21.0 |
21.3 |
21.5 |
21.8 |
22.0 |

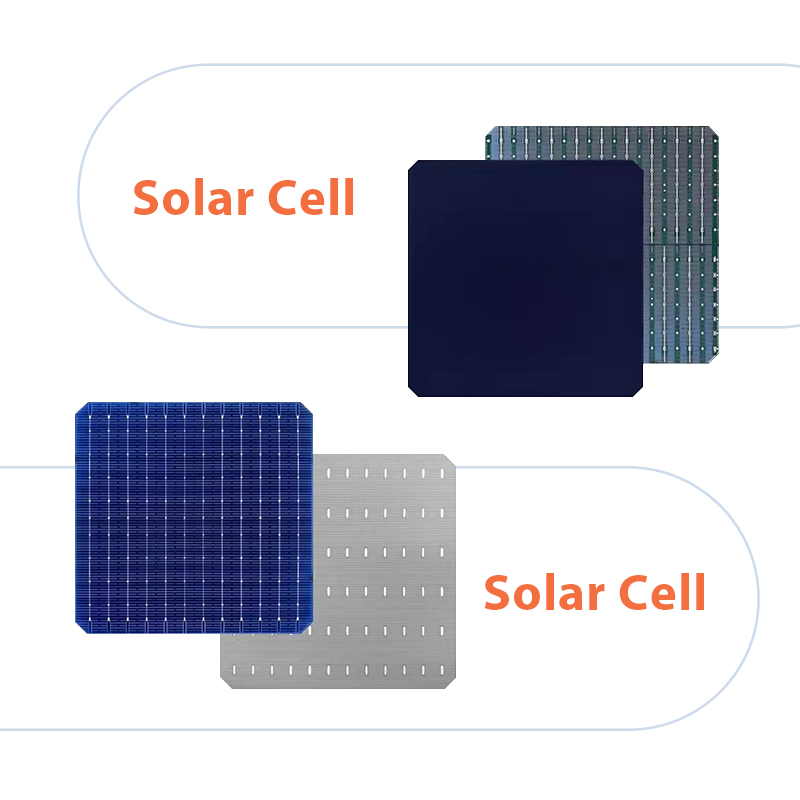

Solar Cell
Key Component in Photovoltaic:
At the heart of photovoltaic systems, the solar cell stands as the fundamental building block.
Our commitment to excellence is evident as we utilize cutting-edge solar cells from renowned
tier 1 companies like Longi and TW Solar.
These cells boast high efficiency, top-notch quality, and adherence to industry standards.

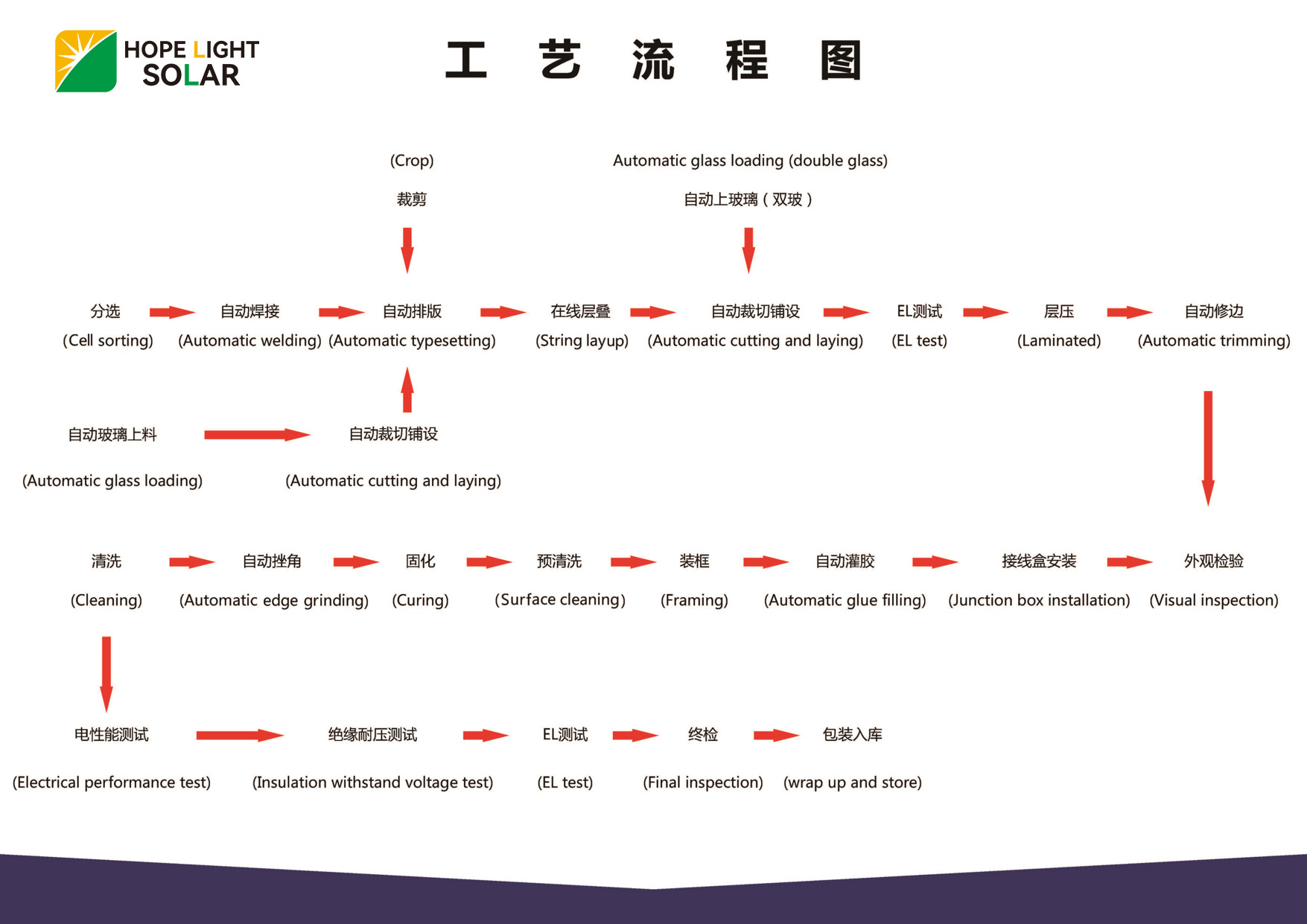

Production Equipment
Cutting-Edge Production Facilities:
Our state-of-the-art production equipment, exemplified by the third-generation production line,
is tailor-made for Half Cut Solar Cells like the 166, 182, and 210 cell variants.
Embrace innovation with highly automated, intelligent,
and mechanized processes that ensure precision and efficiency.
Auxiliary materials and accessories
Premium Supportive Components:
Elevate your solar panel quality with the application of high-quality auxiliary materials in our components. Our commitment to excellence is reflected in a standard production process that ensures traceability throughout.

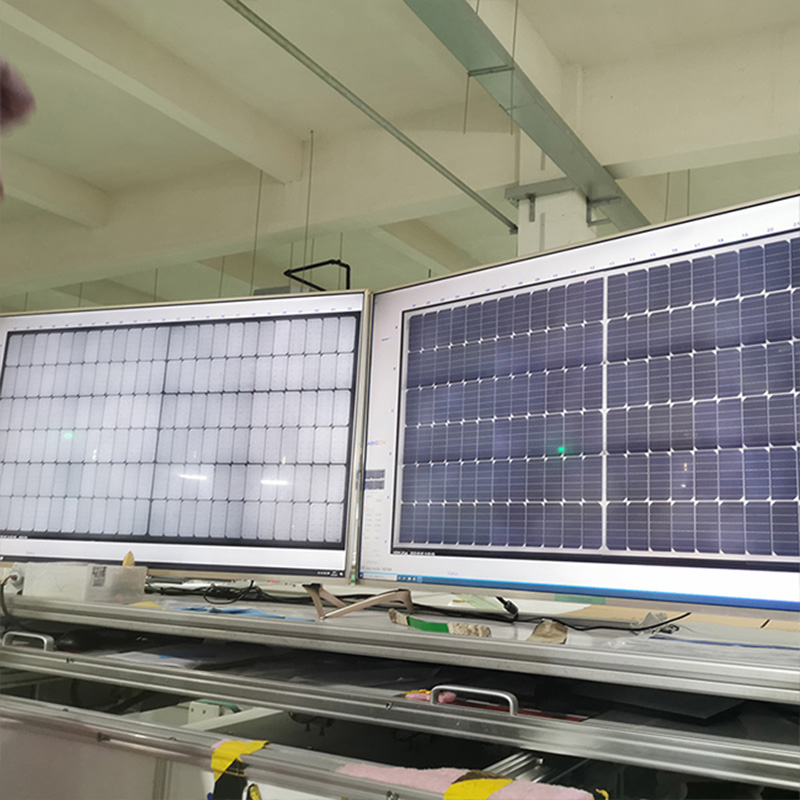

Benefit from double guarantees through both machine and manual detection in the entire production process.
