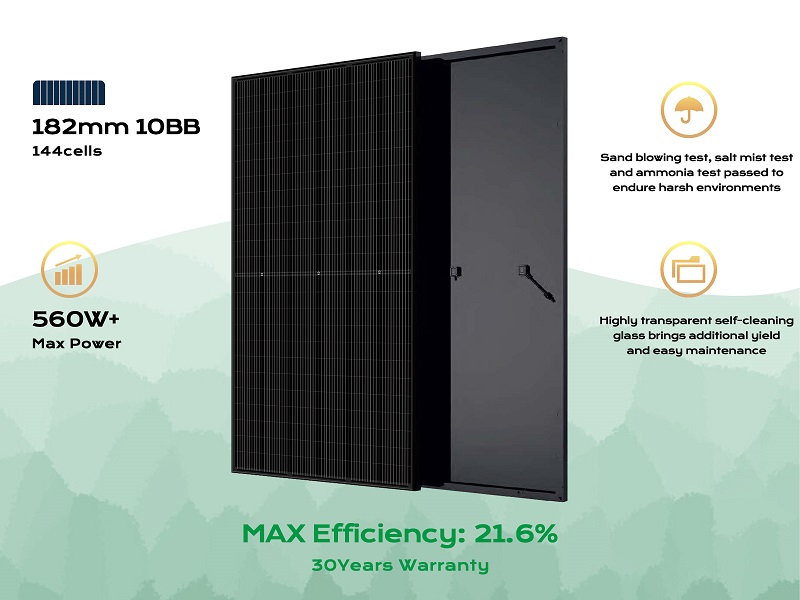

PERC Solar Module
Model: HP550W-PS
Dimension: 2278*1134*35/30 mm
Double Glass White Frame Solar Panel
Power Range: 550W-560W
Embrace the future of solar technology with our solar panel manufacturers,
delivering roof solar panels that excel in performance and durability.
Explore the photovoltaic panels price options tailored to your needs,
with solar panels for your home that feature SMBB Technology and non-destructive cutting for unmatched precision.
The unique design ensures optimal energy production, even under challenging inter-row shading conditions.
With a commitment to a lower guaranteed first-year degradation, our panels offer a reliable and cost-effective solar solution.
ELECTRICAL DATA(STC) |
|||||
MODEL |
HP540W-PS |
HP545W-PS |
HP550W-PS |
HP555W-PS |
HP560W-PS |
Peak Power Watts-PMA×(Wp)* |
540 |
545 |
550 |
555 |
560 |
Power Output Tolerance-PMAX(W) |
0~+5 |
||||
MECHANICAL DATA |
2278*1134*35/30mm / 28kg |
||||
Maximum Power Voltage-VMPP(V) |
41.64 |
41.8 |
41.96 |
42.12 |
42.28 |
Maximum Power Current-IMPP(A) |
12.97 |
13.04 |
13.11 |
13.18 |
13.25 |
Open Circuit Voltage-Voc(V) |
49.6 |
49.75 |
49.9 |
50.05 |
50.2 |
Short Circuit Current-Isc(A) |
13.86 |
13.93 |
14 |
14.07 |
14.14 |
Module Efficiency(%) |
20.9 |
21.1 |
21.3 |
21.5 |
21.7 |
Solar Cell
Empowering Solar Solutions with Tier 1 Cells:
Empower your solar solutions with solar cells sourced from tier 1 leaders Longi and TW Solar.
Experience the pinnacle of efficiency, quality, and standardization in every facet of your photovoltaic components.
Production Equipment
Efficient Automation, Impeccable Results:
Our production equipment, featuring the cutting-edge third-generation line, is your gateway to efficient manufacturing of Half Cut Solar Cells, including the 166, 182, and 210 cell options.
With highly automated, intelligent, and mechanized processes, we guarantee impeccable results and high production capacity.
Auxiliary materials and accessories
High-Grade Materials, High-Caliber Production:
Elevate your solar panel production with the incorporation of high-grade auxiliary materials.
Follow a meticulously designed standard production process that ensures traceability.
Rely on the dual assurance of machine detection and manual checks to maintain a high caliber of production.
