N-type Module
Model: HP450W-NS
Dimension: 1762*1134*30 mm

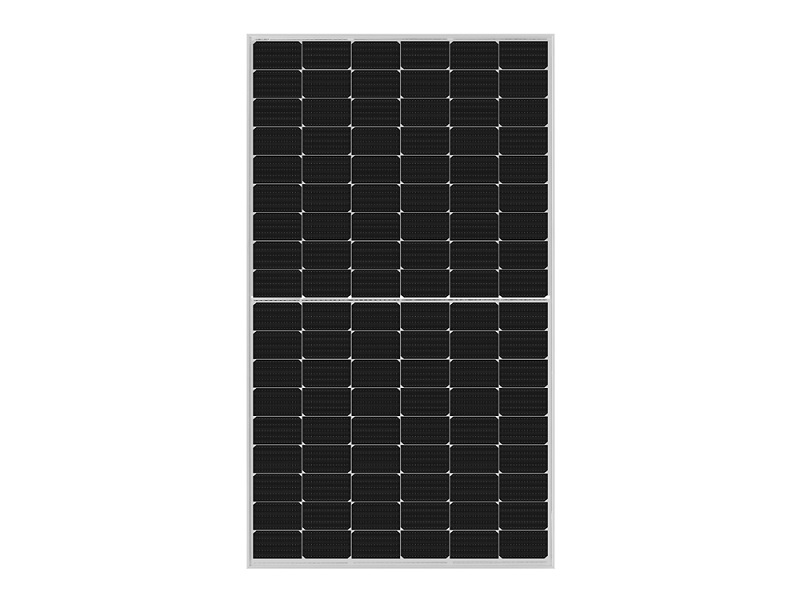

TOPCON White Frame Solar Panel
Power Range: 450W-470W
Improve your energy situation with solar panels designed for efficiency.
Our solar panels use advanced SMBB technology, solar cells are cut without damage
Whether you choose to install solar panels on the roof or in open space,
their unique design guarantees optimized energy production,
even in shaded conditions, topcon solar panel is not afraid of weak light.
Guaranteed lower first year and annual degradation.
ELECTRICAL DATA(STC) |
|||||
MODEL |
HP450W-NS |
HP455W-NS |
HP460W-NS |
HP465W-NS |
HP470W-NS |
Peak Power Watts-PMA×(Wp)* |
450 |
455 |
460 |
465 |
470 |
Power Output Tolerance-PMAX(W) |
0~+5 |
||||
MECHANICAL DATA |
1762*1134*30mm / 21kg |
||||
Maximum Power Voltage-VMPP(V) |
32.83 |
33.01 |
33.19 |
33.37 |
33.55 |
Maximum Power Current-IMPP(A) |
13.71 |
13.79 |
13.87 |
13.94 |
14.01 |
Open Circuit Voltage-Voc(V) |
39.30 |
39.50 |
39.70 |
39.90 |
40.10 |
Short Circuit Current-ksc(A) |
14.48 |
14.57 |
14.66 |
14.74 |
14.83 |
Module Efficiency(%) |
22.5 |
22.8 |
23.0 |
23.3 |
23.5 |
Solar Cell
At the core of our solar panels are Tier 1 solar cells from renowned brands such as
Longi, TW Solar, and Jinko Solar , Trina Solar ,
These cells exhibit no color variations, ensuring high efficiency and incorporating state-of-the-art technology. Prior to panel manufacturing, every solar cell undergoes rigorous inspection and sorting procedures.
Production Equipment
Advanced Automation for Seamless Production:
Step into the future of solar panel manufacturing with our third-generation production line,
designed for Half Cut Solar Cells like the 166, 182, and 210 cell configurations.
Advanced automation ensures a seamless production process, reducing errors and enhancing overall efficiency.
Auxiliary materials and accessories
Precision Engineering for Reliability:
Embrace precision engineering with solar panel components using high-quality auxiliary materials.
Our standard production process guarantees traceability, while the dual assurance of machine detection and manual checks ensures reliability and precision throughout.
