PERC Module
Model: HP440/450/460W-PS
Dimension: 2094*1038*35 mm

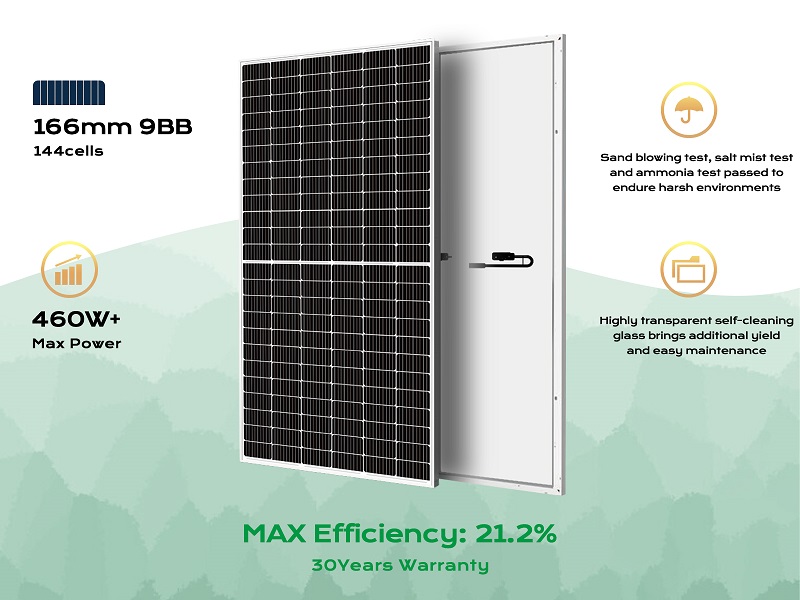

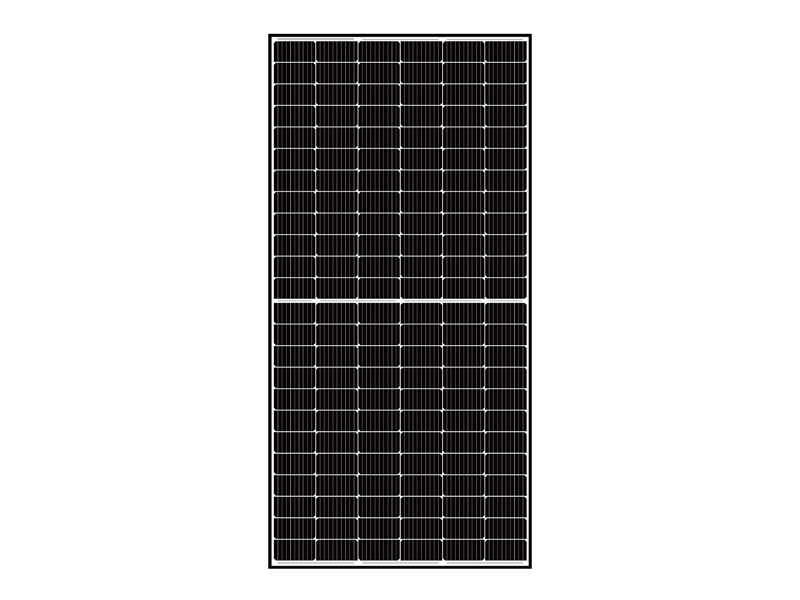

Single Glass White frame solar panel
power range: 440W/450W/460W
Elevate your business's energy efficiency with solar panel designed to withstand harsh environments.
Our solar panels for business offer resilience against salt, ammonia corrosion, and blowing sand.
With advanced PID resistance technology, they ensure optimal performance
even in high-temperature and high-humidity areas. Invest wisely with a lower Levelized Cost Of Energy (LCOE),
reduced Balance Of System (BOS) costs, and a shorter payback time.
ELECTRICAL DATA(STC) |
|||||
MODEL |
HP440W-PS |
HP445W-PS |
HP450W-PS |
HP455W-PS |
HP460W-PS |
Peak Power Watts-PMA×(Wp)* |
440 |
445 |
450 |
455 |
460 |
Power Output Tolerance-PMAX(W) |
0~+5 |
||||
MECHANICAL DATA |
2094*1038*35 / 28kg |
||||
Maximum Power Voltage-VMPP(V) |
41.0 |
41.2 |
41.4 |
41.6 |
41.8 |
Maximum Power Current-IMPP(A) |
10.74 |
10.81 |
10.88 |
10.95 |
11.01 |
Open Circuit Voltage-Voc(V) |
48.8 |
49.0 |
49.2 |
49.4 |
49.6 |
Short Circuit Current-lsc(A) |
11.47 |
11.54 |
11.61 |
11.68 |
11.75 |
Module Efficiency(%) |
20.2 |
20.5 |
20.7 |
20.9 |
21.2 |
Solar Cell
Utilizing Tier 1 solar cells from renowned brands like Longi, TW Solar, and Jinko Solar,
our solar panel boast high efficiency and no color differences.
Featuring cutting-edge technology, each solar cell undergoes meticulous inspection and sorting prior to panel assembly.
Production Equipment
Streamlined Manufacturing Excellence:
Embrace manufacturing excellence with our third-generation production line,
finely tuned for Half Cut Solar Cells like the 166, 182, and 210 cell configurations.
The seamless integration of automation, intelligence, and mechanization ensures a streamlined production process with minimal errors.
Auxiliary materials and accessories
Precision with Premium Materials:
Achieve precision in solar panel components by choosing premium auxiliary materials.
Our standard production process ensures traceability,
and the dual guarantees of machine detection and manual checks provide an extra layer of precision
and reliability in the manufacturing process.
