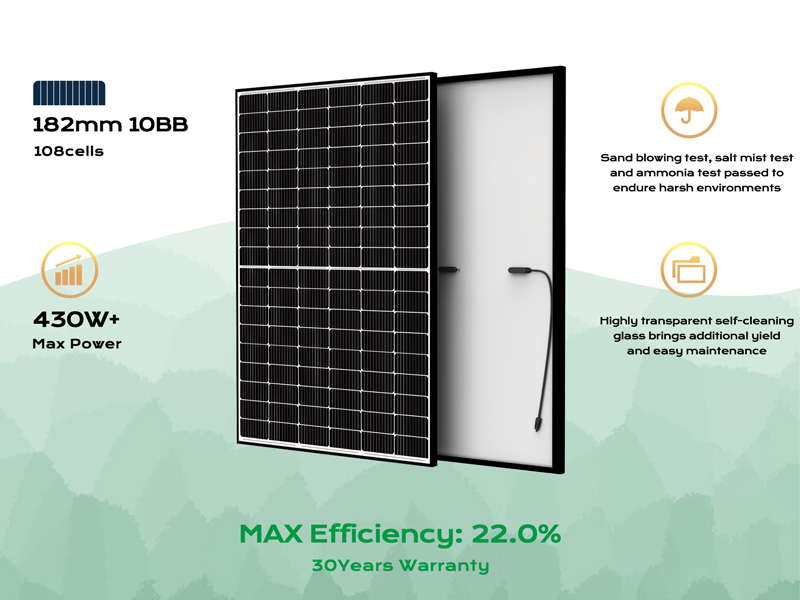

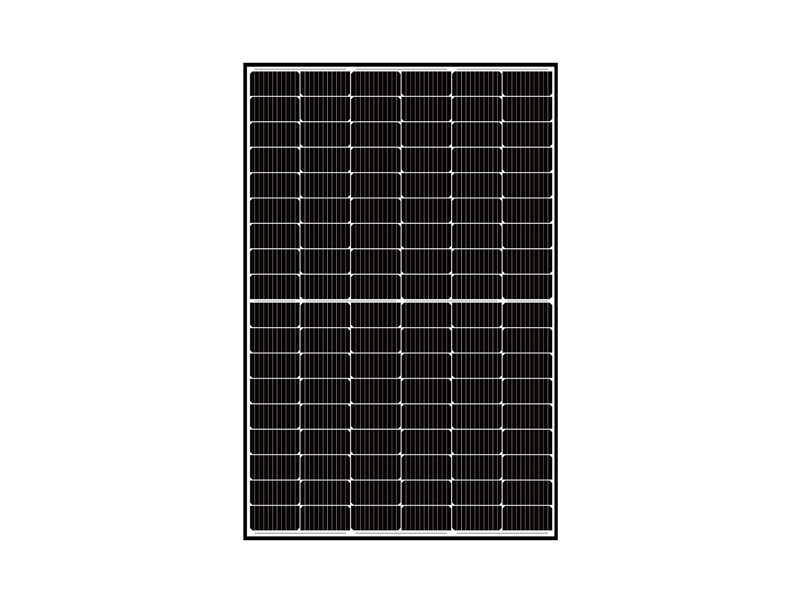

PERC Solar Module
Model: HP430W-PS
Dimension: 1722*1134*30 mm
Single Glass Black Frame Solar Panel
Power Range: 400W-430W
Invest in sustainable energy solutions with our solar panel designed for residential use.
Our solar panels for your home are competitively priced, ensuring cost-effectiveness for homeowners.
With a focus on advanced technology and resistance to ammonia corrosion and blowing sand,
our products guarantee long-term reliability. Additionally, our photovoltaic panels are PID resistant,
contributing to a lower Levelized Cost Of Energy (LCOE) and reduced Balance Of System (BOS) costs.
ELECTRICAL DATA(STC) |
|||||||
MODEL |
HP400W-PS |
HP405W-PS |
HP410W-PS |
HP415W-PS |
HP420W-PS |
HP425W-PS |
HP430W-PS |
Peak Power Watts-PMAx(Wp)* |
400 |
405 |
410 |
415 |
420 |
425 |
430 |
Power Output Tolerance-PMAX(W) |
0~+5 |
||||||
MECHANICAL DATA |
1722*1134*30mm / 20kg |
||||||
Maximum Power Voltage-VMPP(V) |
31.01 |
31.21 |
31.45 |
31.65 |
31.85 |
32.05 |
32.25 |
Maximum Power Current-IMPP(A) |
12.90 |
12.98 |
13.04 |
13.12 |
13.19 |
13.27 |
13.34 |
Open Circuit Voltage-Voc(V) |
37.07 |
37.23 |
37.32 |
37.41 |
37.5 |
37.59 |
37.68 |
Short Circuit Current-Isc(A) |
13.79 |
13.87 |
13.95 |
14.03 |
14.11 |
14.19 |
14.27 |
Module Efficiency(%) |
20.5 |
20.8 |
21.0 |
21.3 |
21.5 |
21.8 |
22.0 |
Solar Cell
Powered by Premium Solar Cells:
Elevate your solar experience with our reliance on premium solar cells sourced exclusively from industry leaders such as Longi and TW Solar.
Benefit from their high efficiency, superior quality, and adherence to standardized specifications.
Production Equipment
Precision in Every Panel:
The factory's third-generation production line is optimized for Half Cut Solar Cells,
specifically the 166, 182, and 210 cell models.
With a focus on highly automated, intelligent, and mechanized processes,
we eliminate human errors, guaranteeing unparalleled consistency in each solar panel produced.
Auxiliary materials and accessories
Quality Enhanced by Superior Materials:
Unleash the potential of your solar panels with our commitment to high-quality auxiliary materials.
Follow our standard production process, ensuring traceability at every step.
Enjoy the double assurance of machine detection and manual checks,
enhancing the overall quality of your solar components.
