PERC Module
Model: HP450W-PS
Dimension: 2094*1038*35 mm

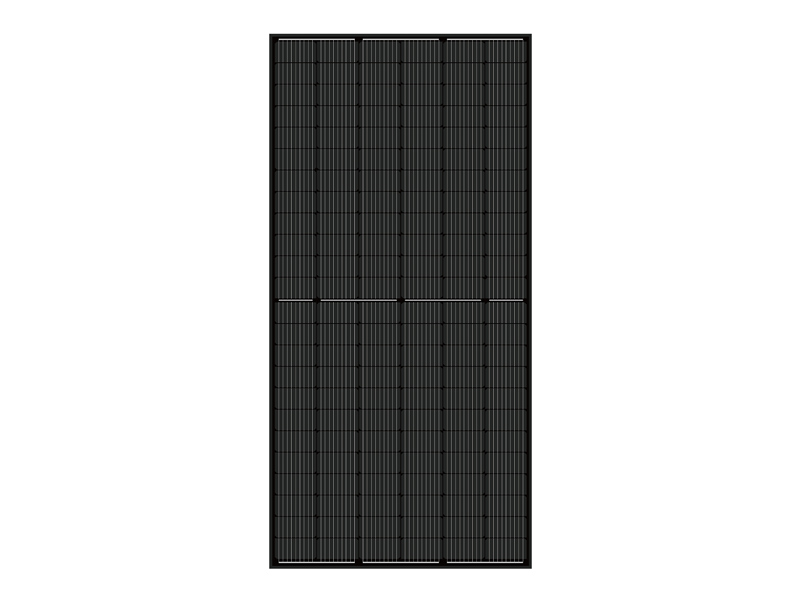

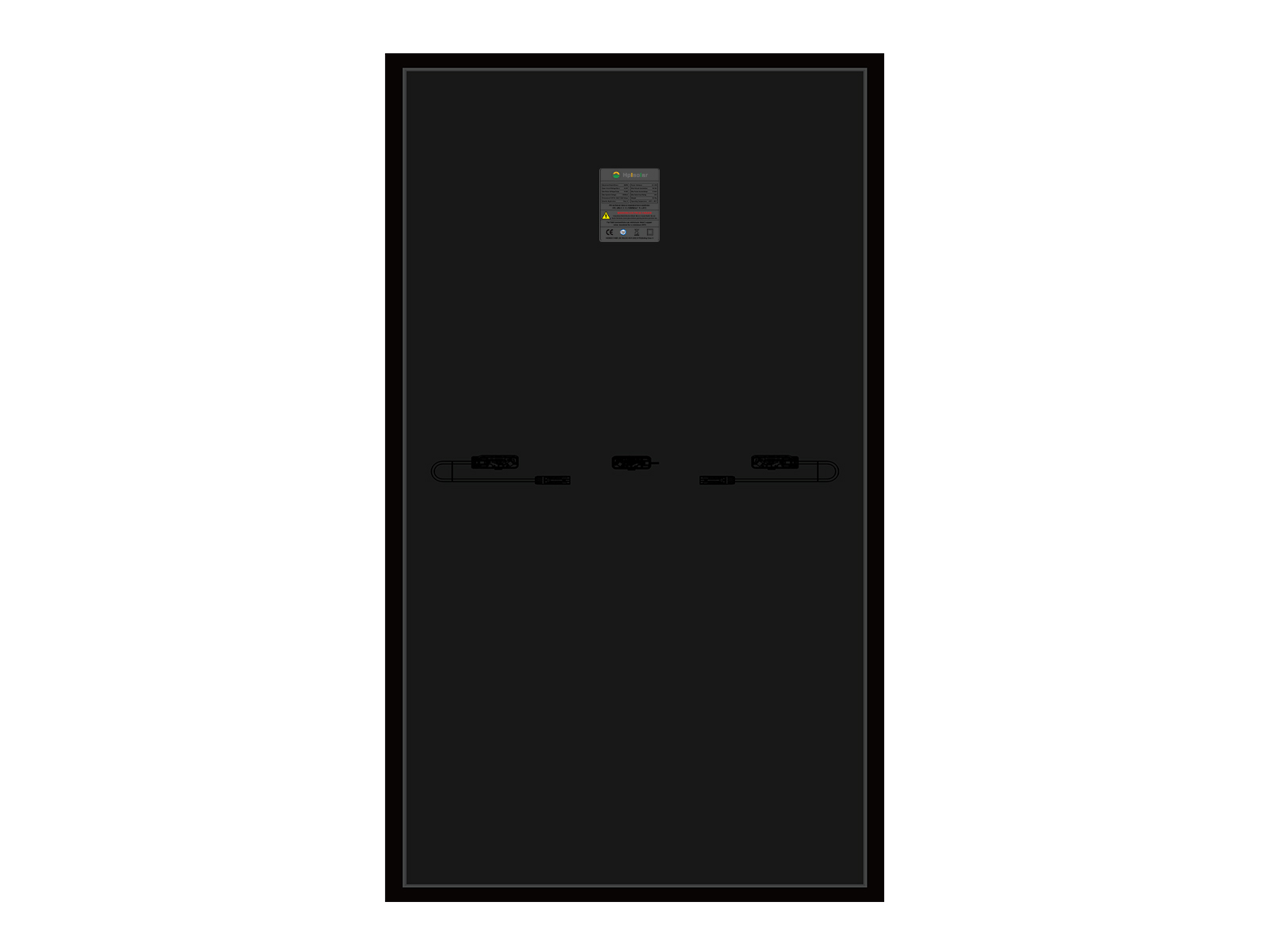

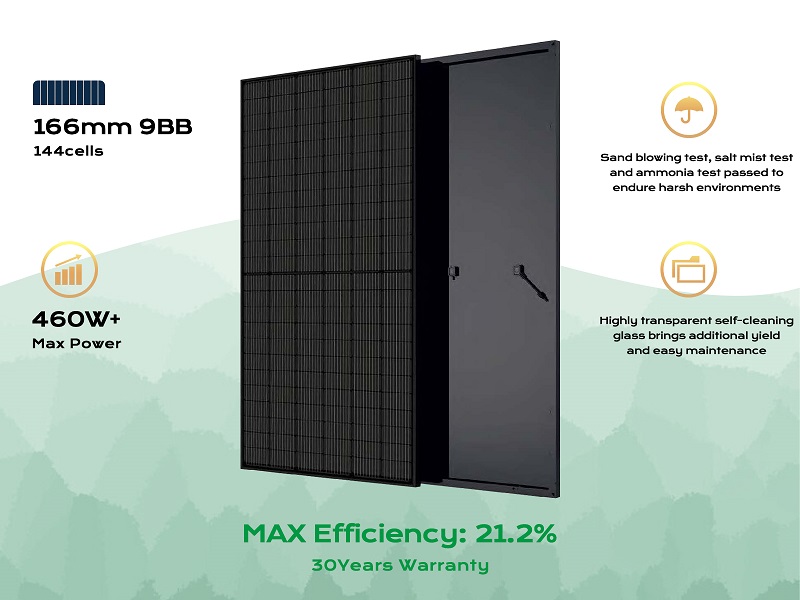

Single Glass Full Black Solar Panel
power range: 440W/450W/460W
Optimize your rooftop space by installing solar panel designed for businesses.
With a focus on solar panel efficiency, our products ensure maximum energy production.
Resilient against ammonia corrosion, blowing sand, and other harsh conditions,
these panels offer longevity and reliability.
Take advantage of a competitive solar panel cost and price to enhance your business's sustainability.
ELECTRICAL DATA(STC) |
|||||
MODEL |
HP440W-PS |
HP445W-PS |
HP450W-PS |
HP455W-PS |
HP460W-PS |
Peak Power Watts-PMA×(Wp)* |
440 |
445 |
450 |
455 |
460 |
Power Output Tolerance-PMAX(W) |
0~+5 |
||||
MECHANICAL DATA |
2094*1038*35 / 28kg |
||||
Maximum Power Voltage-VMPP(V) |
41.0 |
41.2 |
41.4 |
41.6 |
41.8 |
Maximum Power Current-IMPP(A) |
10.74 |
10.81 |
10.88 |
10.95 |
11.01 |
Open Circuit Voltage-Voc(V) |
48.8 |
49.0 |
49.2 |
49.4 |
49.6 |
Short Circuit Current-lsc(A) |
11.47 |
11.54 |
11.61 |
11.68 |
11.75 |
Module Efficiency(%) |
20.2 |
20.5 |
20.7 |
20.9 |
21.2 |
Solar Cell
Our solar panels are equipped with Tier 1 solar cells from leading brands such as
Longi, TW Solar, and Jinko Solar.
These cells ensure high efficiency and uniform color,
incorporating the latest technological advancements.
Before panel manufacturing, each solar cell undergoes detailed inspection and sorting.
Production Equipment
Precision Beyond Limits:
Elevate your solar panel production with our third-generation line,
specialized for Half Cut Solar Cells such as the 166, 182, and 210 cell varieties.
Achieve precision beyond limits through highly automated, intelligent,
and mechanized processes, resulting in consistently high-quality panels.
Auxiliary materials and accessories
Crafted for Excellence:
Craft solar panels with excellence by using high-quality auxiliary materials in our components.
Our standard production process guarantees traceability,
while the combination of machine detection and manual checks offers double assurances for an excellent end product.
