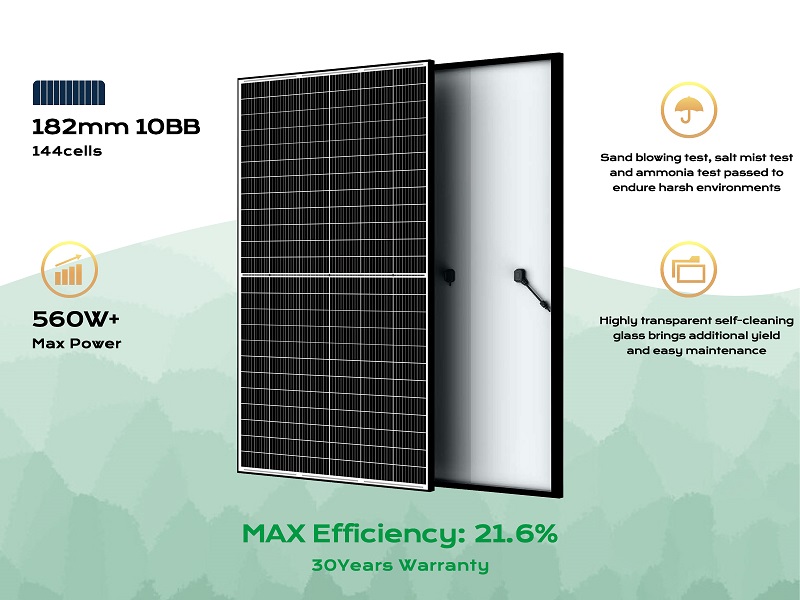

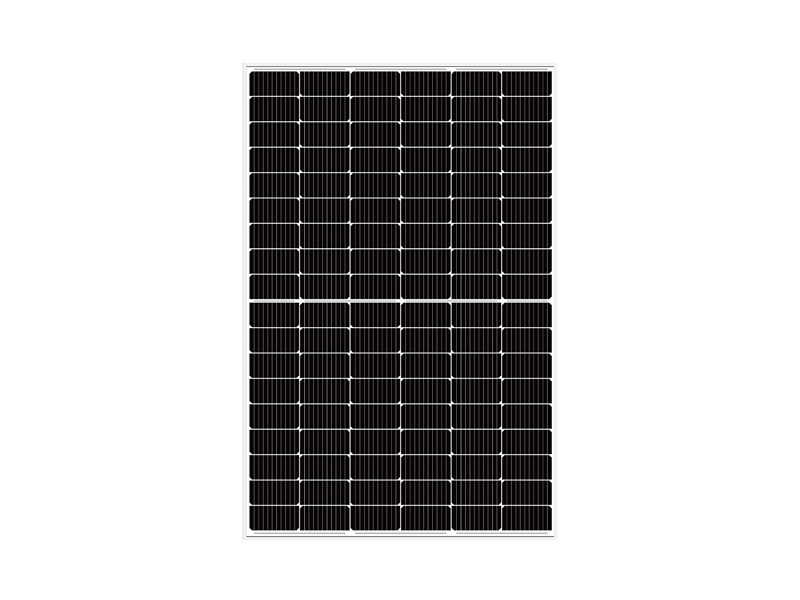

PERC Solar Module
Model: HP550W-PS
Dimension: 2278*1134* 35/30mm
Single Glass Black Frame Solar Panel
Power Range: 540W-560W
Embrace cutting-edge technology with our solar panel manufacturers,
delivering top-tier products for residential use.
Our competitively priced photovoltaic panels ensure affordability without compromising on quality.
Resistant to harsh environmental factors like salt, ammonia, and blowing sand,
our solar panels guarantee longevity and efficiency.
With PID resistance and a focus on lowering LCOE and BOS costs,
our manufacturers lead the way in providing sustainable energy solutions.
ELECTRICAL DATA(STC) |
|||||
MODEL |
HP540W-PS |
HP545W-PS |
HP550W-PS |
HP555W-PS |
HP560W-PS |
Peak Power Watts-PMA×(Wp)* |
540 |
545 |
550 |
555 |
560 |
Power Output Tolerance-PMAX(W) |
0~+5 |
||||
MECHANICAL DATA |
2278*1134*35/30mm / 28kg |
||||
Maximum Power Voltage-VMPP(V) |
41.64 |
41.80 |
41.96 |
42.12 |
42.28 |
Maximum Power Current-IMPP(A) |
12.97 |
13.04 |
13.11 |
13.18 |
13.25 |
Open Circuit Voltage-Voc(V) |
49.60 |
49.75 |
49.90 |
50.05 |
50.20 |
Short Circuit Current-Isc(A) |
13.86 |
13.93 |
14.00 |
14.07 |
14.14 |
Module Efficiency(%) |
20.9 |
21.1 |
21.3 |
21.5 |
21.7 |
Solar Cell
Optimal Performance, Trusted Sources:
Our commitment to excellence is reflected in our use of solar cells from reputable tier 1 companies
such as Longi and TW Solar.
These cells guarantee optimal performance, ensuring that your photovoltaic system operates at its peak efficiency.
Production Equipment
Seamless Frame and Silicone Application:
Our production equipment, featuring the third-generation line, seamlessly handles the fabrication of Half Cut Solar Cells like the 166, 182, and 210 cell models.
The automation extends to the application of frames and silicone,
guaranteeing precision and efficiency in every step.
Auxiliary materials and accessories
Uncompromise Quality in Every Component:
Achieve unparalleled quality in your solar panels with the incorporation of top-tier auxiliary materials.
Our standard production process guarantees traceability,
while the combination of machine detection and manual checks provides a double layer of assurance throughout the manufacturing process.
