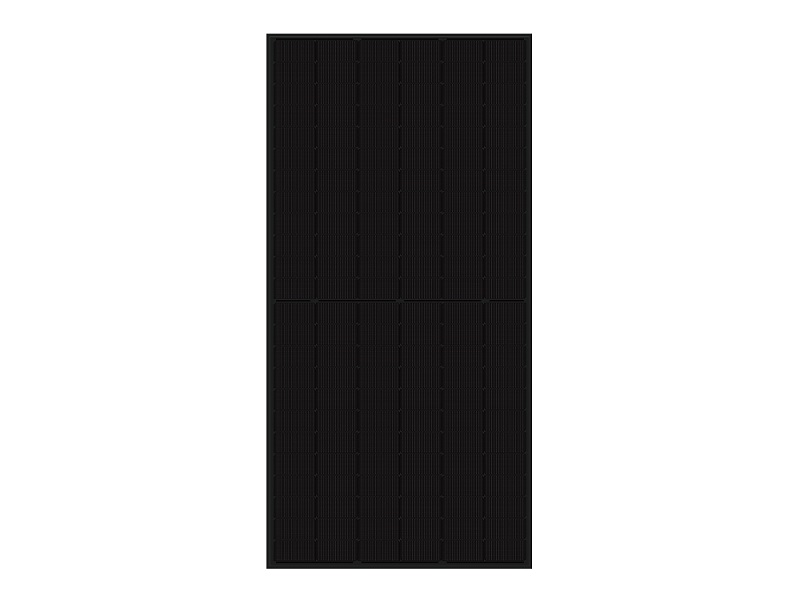

N-Type Module
Model: HP580W-NS
Dimension: 2278*1134*30 mm
Single glass TOPCON Full Black solar panel
power range: 580 W
Suitable for residential and rooftop photovoltaic systems, the black product is high-end and classy.
Our solar panels are very cost-competitive and are ideal for companies that want to improve sustainability.
The most popular N-type solar panel now has low attenuation rate and high output rate, and is suitable for most major brand inverters.
ELECTRICAL DATA(STC) |
|||||
MODEL |
HP570W-NS |
HP575W-NS |
HP580W-NS |
HP585W-NS |
HP590W-NS |
Peak Power Watts-PMA×(Wp)* |
570 |
575 |
580 |
585 |
590 |
Power Output Tolerance-PMAX(W) |
0~+5 |
||||
MECHANICAL DATA |
2278*1134*30mm / 28kg |
||||
Maximum Power Voltage-VMPP(V) |
42.99 |
43.17 |
43.35 |
43.53 |
43.71 |
Maximum Power Current-IMPP(A) |
13.26 |
13.32 |
13.38 |
13.44 |
13.50 |
Open Circuit Voltage-Voc(V) |
51.99 |
52.15 |
52.31 |
52.47 |
52.63 |
Short Circuit Current-ksc(A) |
13.89 |
13.95 |
14.01 |
14.07 |
14.13 |
Module Efficiency(%) |
22.1 |
22.3 |
22.5 |
22.6 |
22.8 |
Solar Cell
Utilizing Tier 1 brands like Longi, TW Solar, and Jinko Solar, our solar panels are powered
by high-efficiency solar cells with no color discrepancies.
Incorporating the latest technological advancements,
each solar cell undergoes a thorough inspection and sorting process before the panel assembly.
Production Equipment
Intelligent Manufacturing for Precision:
Immerse yourself in the era of intelligent manufacturing with our third-generation production line, perfectly suited for Half Cut Solar Cells, including the 166, 182, and 210 cell models.
Precision is guaranteed through highly automated and mechanized processes,
setting new standards in the industry.
Auxiliary materials and accessories
Quality Components for Sustainable Energy:
Embrace sustainable energy with solar panels featuring components crafted from high-quality auxiliary materials. Our commitment to a standard production process ensures traceability,
with the dual assurance of machine detection and manual checks for sustainable and reliable energy solutions.
