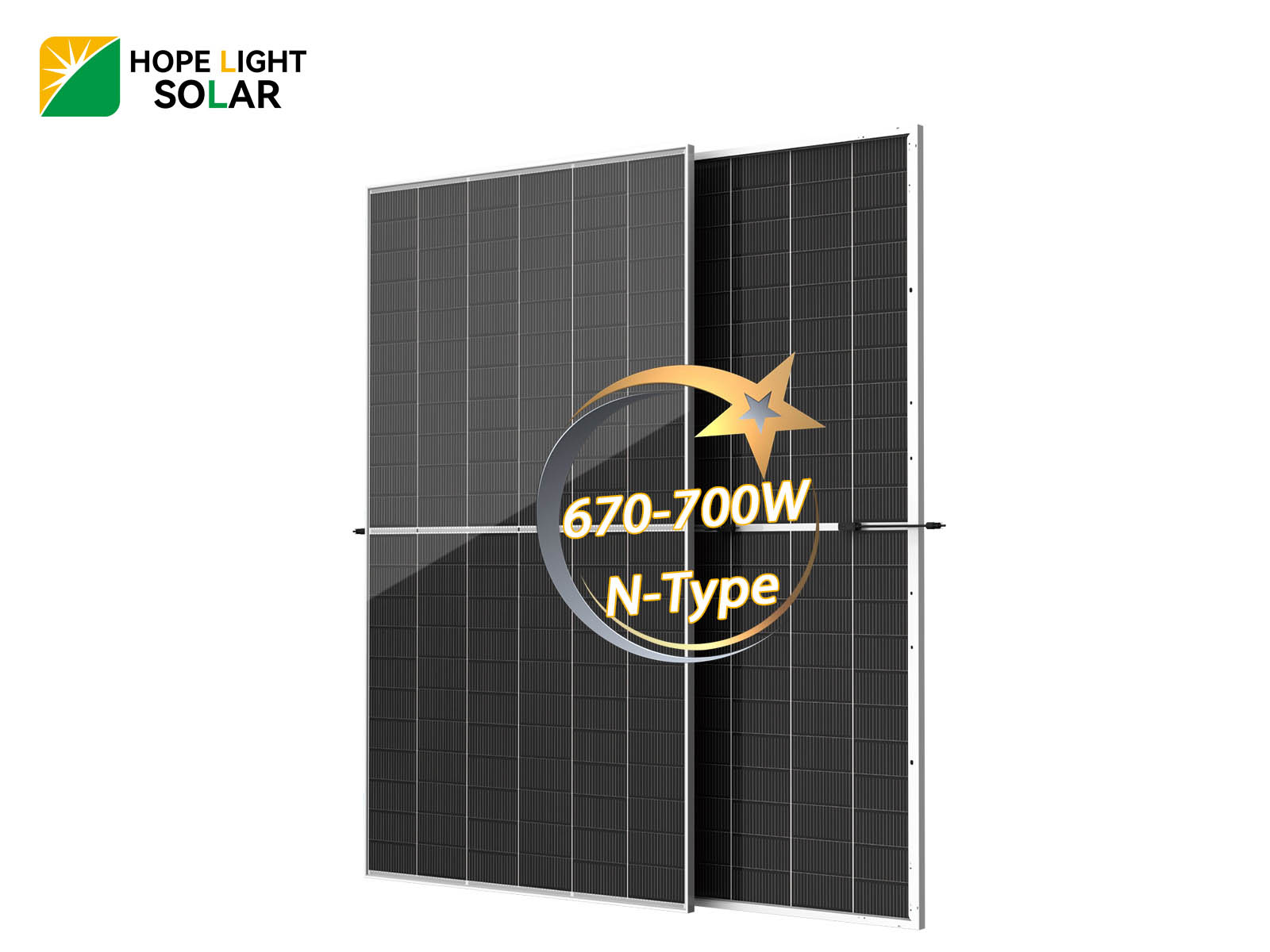

TOPCON Module
Model: HP700W-ND
Dimension: 2384*1303*35 mm
Double Glass TOPCON White Frame solar panel
Power Range: 675W-700W
Empower your business with solar panel that prioritize efficiency and cost-effectiveness.
The solar panel cost is optimized for businesses looking to enhance their sustainability.
Resistant to harsh conditions like salt, ammonia corrosion,and blowing sand,
these panels ensure reliability.With advanced PID resistance technology,
lower LCOE, reduced BOS costs, and a shorter payback time,investing in solar becomes a strategic choice.
ELECTRICAL DATA(STC) |
||||||
MODEL |
HP675W-ND |
HP680W-ND |
HP685W-ND |
HP690W-ND |
HP695W-ND |
HP700W-ND |
Peak Power Watts-PMA×(Wp)* |
675 |
680 |
685 |
690 |
695 |
700 |
Power Output Tolerance-PMAX(W) |
0~+5 |
|||||
MECHANICAL DATA |
2384*1303*35mm / 38kg |
|||||
Maximum Power Voltage-VMPP(V) |
39.4 |
39.6 |
39.8 |
40.0 |
40.2 |
40.4 |
Maximum Power Current-IMPP(A) |
17.14 |
17.17 |
17.21 |
17.25 |
17.29 |
17.33 |
Open Circuit Voltage-Voc(V) |
47.2 |
47.4 |
47.7 |
47.9 |
48.3 |
48.5 |
Short Circuit Current-Isc(A) |
18.14 |
18.18 |
18.21 |
18.25 |
18.28 |
18.31 |
Module Efficiency(%) |
21.7 |
21.9 |
22.1 |
22.2 |
22.4 |
22.5 |
Solar Cell
Featuring Tier 1 brands such as Trina, TW Solar, and Jinko Solar, our solar panels are powered by solar cells with no color differences and high efficiency.
These cells incorporate the latest technological innovations and undergo comprehensive inspection and sorting before panel assembly.
Production Equipment
Automated Precision for Consistency:
Our production equipment, exemplified by the third-generation line, redefines precision for the manufacturing of Half Cut Solar Cells—be it the 166, 182, or 210 cell types.
The automated processes not only minimize errors but also ensure unmatched consistency in each solar panel.
Auxiliary materials and accessories
Consistent Quality Components:
Ensure consistent quality in your solar panels with components built from high-quality auxiliary materials. Our adherence to a standard production process guarantees traceability, and the dual assurance of machine detection and manual checks maintains consistency throughout.
