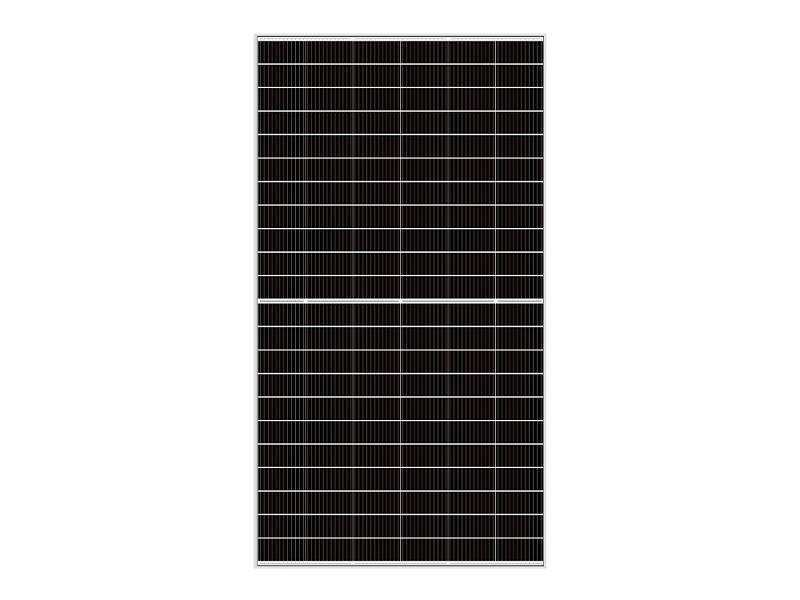

PERC Solar Module
Model: HP670W-PD
Dimension: 2384×1303×33 mm

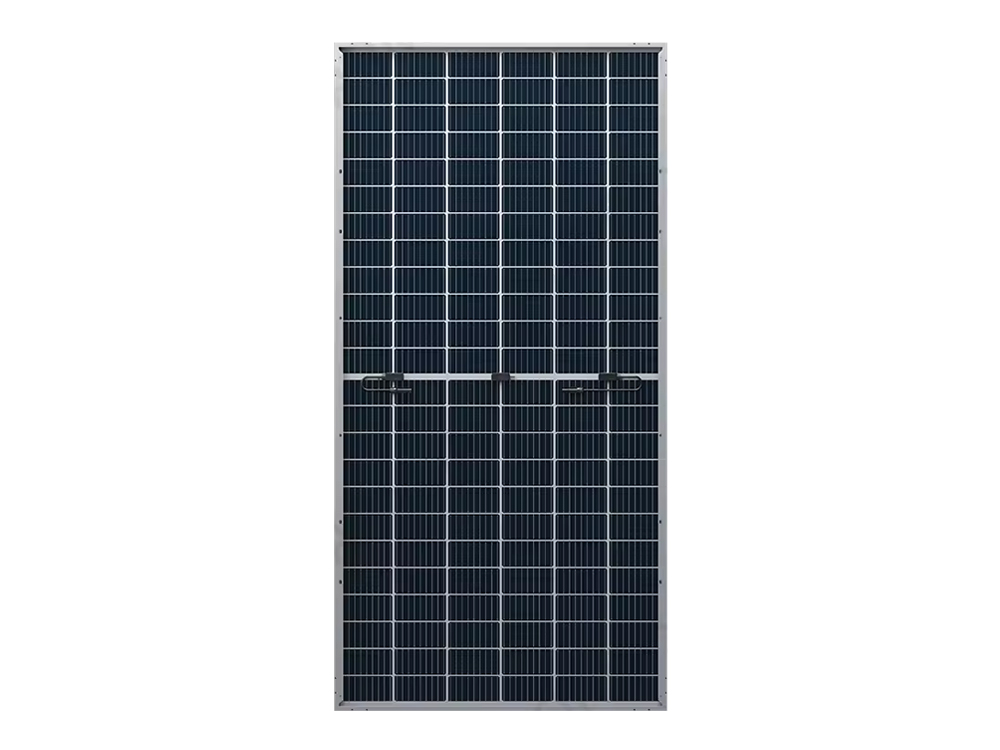

Double Glass White Frame Solar Panel
Power Range: 650W-670W

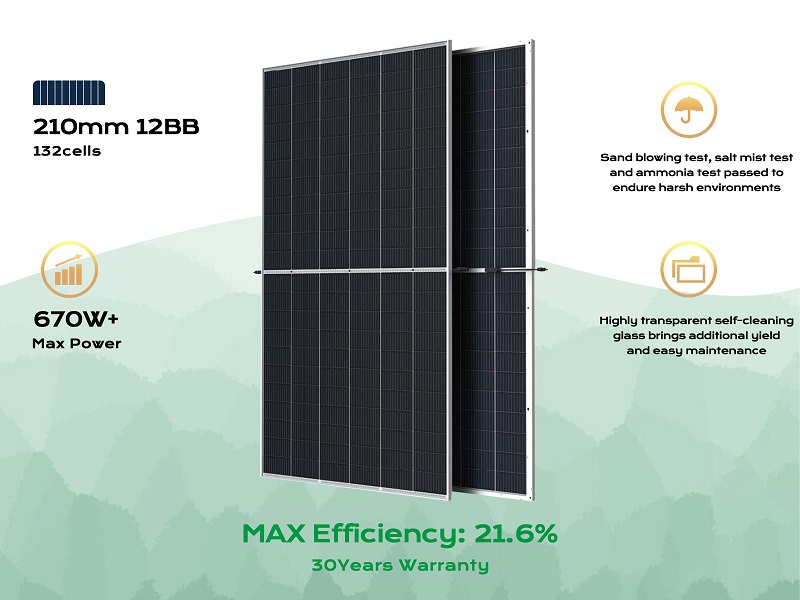

670W high power solar panel

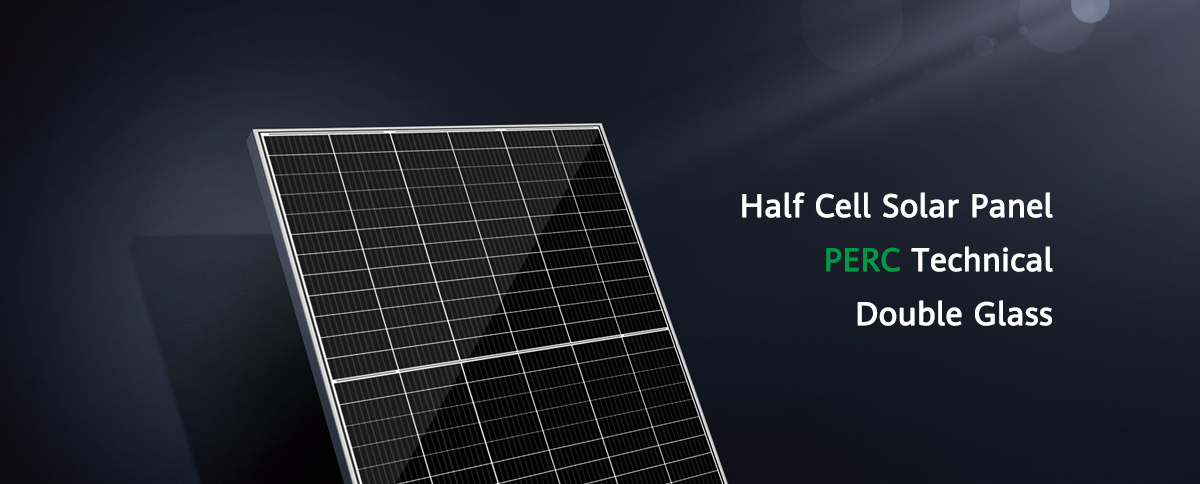

PERC cell, double glass, high light transmittance
ELECTRICAL DATA(STC) |
|||||
MODEL |
HP650W-PD |
HP655W-PD |
HP660W-PD |
HP665W-PD |
HP670W-PD |
Peak Power Watts-PMA×(Wp)* |
650 |
655 |
660 |
665 |
670 |
Power Output Tolerance-PMAX(W) |
0~+5 |
||||
MECHANICAL DATA |
2384×1303×33 mm / 35kg |
||||
Maximum Power Voltage-VMPP(V) |
37.4 |
37.6 |
37.8 |
38 |
38.2 |
Maximum Power Current-IMPP(A) |
17.39 |
17.43 |
17.47 |
17.51 |
17.55 |
Open Circuit Voltage-Voc(V) |
45.3 |
45.5 |
45.7 |
45.9 |
46.1 |
Short Circuit Current-Isc(A) |
18.44 |
18.48 |
18.53 |
18.57 |
18.62 |
Module Efficiency(%) |
20.9 |
21.1 |
21.2 |
21.4 |
21.6 |
Solar Cell
Leading the Industry with Solar Cells:
Our dedication to innovation and performance is evident in our selection of solar cells from tier 1 giants like Trina ,Longi and TW Solar.
Trust in the industry-leading efficiency, quality, and standardization that our solar cells bring to your photovoltaic system.
Production Equipment
Consistency Through Automation:
Unleash the potential of automated precision with our third-generation production line,
perfectly suited for the production of Half Cut Solar Cells like the 166, 182, and 210 cell variants.
Reduce manual errors, guarantee consistency, and experience efficiency at its peak.
Auxiliary materials and accessories
Premium Components for Top Performance:
Optimize the performance of your solar panels with premium auxiliary materials in our components. Follow our standard production process, ensuring traceability throughout.
Rely on the double assurance of machine detection and
manual checks to uphold the highest standards in every component.
