PERC Module
Model: HP550W-PD
Dimension: 2278*1134*30 mm

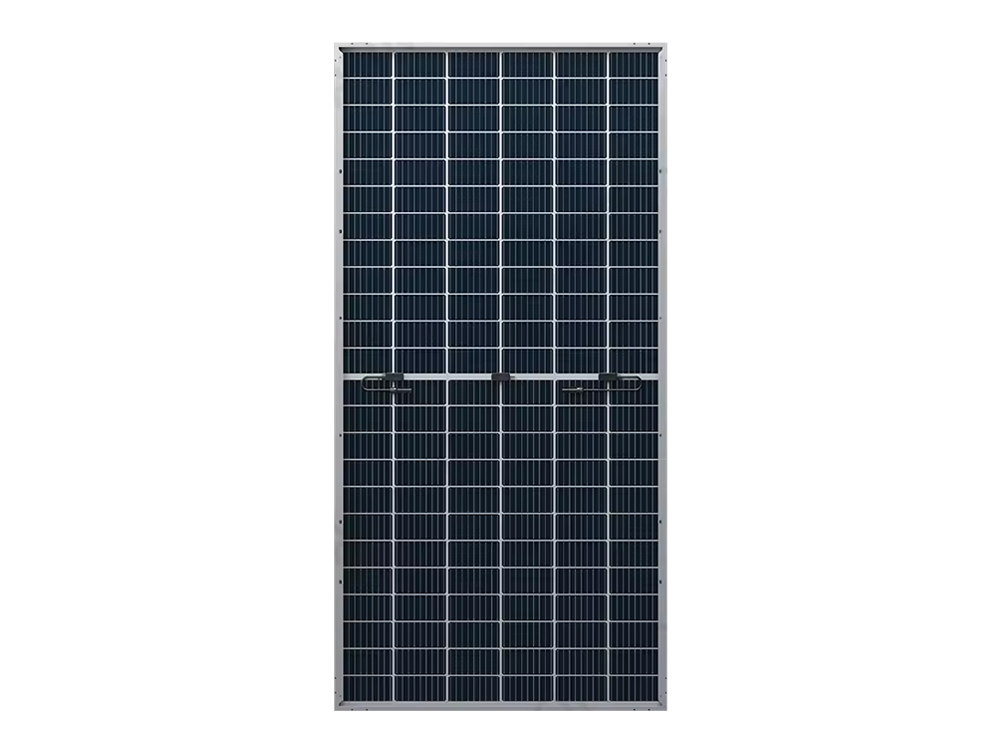

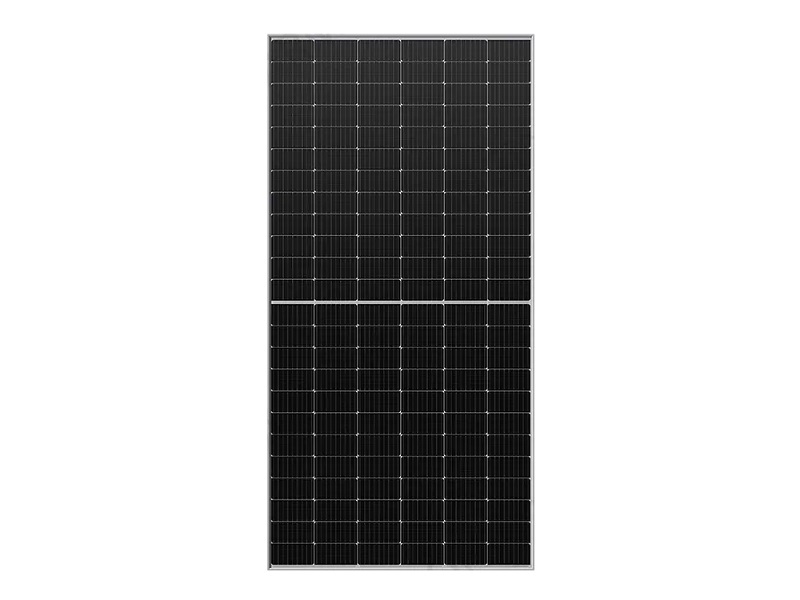

Double glass PERC Solar Panel
power range: 540W-555W
Enhance your business's sustainability with solar panel featuring cutting-edge technology.
Solar panels for business, competitively priced, come with advanced SMBB Technology,
ensuring enhanced mechanical load capacity and non-destructive cutting for precision.
Whether you install solar panels on the roof or in open spaces, their unique design optimizes energy production,
especially under inter-row shading conditions.
Experience a lower guaranteed first-year and annual degradation, providing your business with long-term energy efficiency.
ELECTRICAL DATA(STC) |
|||||
MODEL |
HP535W-PD |
HP540W-PD |
HP545W-PD |
HP550W-PD |
HP555W-PD |
Peak Power Watts-PMA×(Wp)* |
535 |
540 |
545 |
550 |
555 |
Power Output Tolerance-PMAX(W) |
0~+5 |
||||
MECHANICAL DATA |
2278*1134*30mm / 31kg |
||||
Maximum Power Voltage-VMPP(V) |
40.94 |
41.13 |
41.32 |
41.51 |
41.7 |
Maximum Power Current-IMPP(A) |
13.07 |
13.13 |
13.19 |
13.25 |
13.31 |
Open Circuit Voltage-Voc(V) |
49.54 |
49.73 |
49.92 |
50.11 |
50.3 |
Short Circuit Current-Isc(A) |
13.83 |
13.89 |
13.95 |
14.01 |
14.07 |
Module Efficiency(%) |
20.71 |
20.9 |
21.09 |
21.28 |
21.47 |
Solar Cell
Our solar panels feature Tier 1 solar cells from respected brands such as Longi, TW Solar, and Jinko Solar. With high efficiency and no color discrepancies, these cells incorporate the latest technological innovations. Prior to panel manufacturing, each solar cell undergoes comprehensive inspection and sorting.
Production Equipment
Precision Craftsmanship for Optimal Output:
Craft each solar panel with precision using our production equipment, highlighted by
the third-generation line catering to Half Cut Solar Cells like the 166, 182, and 210 cell options.
The automated processes guarantee optimal output by minimizing errors and enhancing overall efficiency.
Auxiliary materials and accessories
Crafting Resilient Solar Solutions:
Craft resilient solar solutions with components featuring high-quality auxiliary materials.
Our standard production process guarantees traceability,
while the dual assurance of machine detection and manual checks adds resilience to every stage of the manufacturing process.
