Brand : Trina
Bifacial Solar Panel
Top-Con , N-type Technology
Power Range : 480W-- 700W

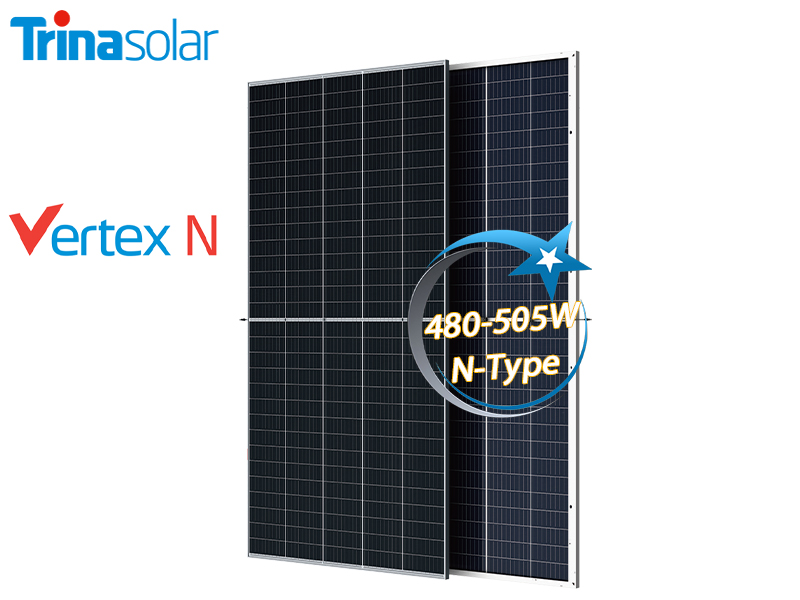

480W-505W Solar Panel
Electrical Specifications
Peak Power Watts-PMAx(Wp)* |
480 |
485 |
490 |
495 |
500 |
505 |
Power Tolerance-PMAX(W) |
0~+5 |
|||||
Maximum Voltage-VMPP(V) |
42.2 |
42.5 |
42.8 |
43.1 |
43.4 |
43.7 |
Maximum Current-IMPP(A) |
11.38 |
11.42 |
11.45 |
11.49 |
11.53 |
11.56 |
Open Circuit Voltage-Voc(V) |
50.7 |
50.9 |
51.1 |
51.3 |
51.5 |
51.7 |
Short Circuit Current-Isc(A) |
11.97 |
12.01 |
12.05 |
12.09 |
12.13 |
12.17 |
Module Efficiency (%) |
19.9 |
20.1 |
20.3 |
20.5 |
20.7 |
21 |
585W-610W Solar Panel
Electrical Specifications
Testing Condition |
STC |
STC |
STC |
STC |
STC |
STC |
Peak Power Watts-PMAX(Wp)* |
585 |
590 |
595 |
600 |
605 |
610 |
Power Tolerance-PMAX(W) |
0 ~ +5W |
|||||
Maximum聽 Voltage-VMPP(V) |
39.5 |
39.7 |
40 |
40.3 |
40.5 |
40.8 |
Maximum聽 Current-IMPP(A) |
14.82 |
14.86 |
14.89 |
14.91 |
14.94 |
14.96 |
Open Circuit Voltage-Voc(V) |
47.5 |
47.8 |
48.1 |
48.4 |
48.7 |
49 |
Short Circuit Current-Isc(A) |
15.68 |
15.72 |
15.76 |
15.8 |
15.83 |
15.86 |
Module Efficiency (%) |
21.7 |
21.8 |
22 |
22.2 |
22.4 |
22.6 |

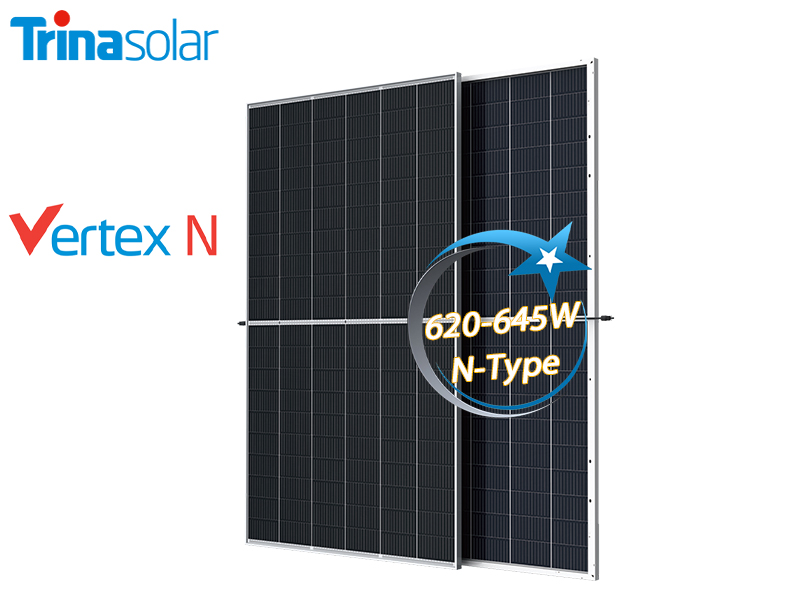

620W-645W Solar Panel
Electrical Specifications
Testing Condition |
STC |
STC |
STC |
STC |
STC |
STC |
Peak Power Watts-PMAX(Wp)* |
620 |
625 |
630 |
635 |
640 |
645 |
Power Tolerance-PMAX(W) |
0~ +5W |
|||||
Maximum Voltage-VMPP(V) |
36.1 |
36.4 |
36.6 |
36.8 |
37 |
37.2 |
Maximum Current-IMPP(A) |
17.16 |
17.19 |
17.22 |
17.26 |
17.3 |
17.34 |
Open Circuit Voltage-Voc(V) |
43.2 |
43.5 |
43.9 |
44.2 |
44.5 |
44.8 |
Short Circuit Current-Isc(A) |
18.18 |
18.21 |
18.24 |
18.27 |
18.3 |
18.33 |
Module Efficiency (%) |
21.9 |
22.1 |
22.3 |
22.4 |
22.6 |
22.8 |
675W-700W Solar Panel
Electrical Specifications
Testing Condition |
STC |
STC |
STC |
STC |
STC |
STC |
Peak Power Watts-PMAX(Wp)* |
675 |
680 |
685 |
690 |
695 |
700 |
Power Tolerance-PMAX(W) |
0~ +5W |
|||||
Maximum Voltage-VMPP(V) |
39.4 |
39.6 |
39.8 |
40.1 |
40.3 |
40.5 |
Maximum Current-IMPP(A) |
17.12 |
17.16 |
17.19 |
17.23 |
17.25 |
17.29 |
Open Circuit Voltage-Voc(V) |
47.2 |
47.4 |
47.7 |
47.9 |
48.3 |
48.6 |
Short Circuit Current-Isc(A) |
18.14 |
18.18 |
18.21 |
18.25 |
18.28 |
18.32 |
Module Efficiency (%) |
21.7 |
21.9 |
22.1 |
22.2 |
22.4 |
22.5 |
