Brand : Longi Solar
Bifacial Solar Panel
BC Technology
Power Range : 450W-- 620W

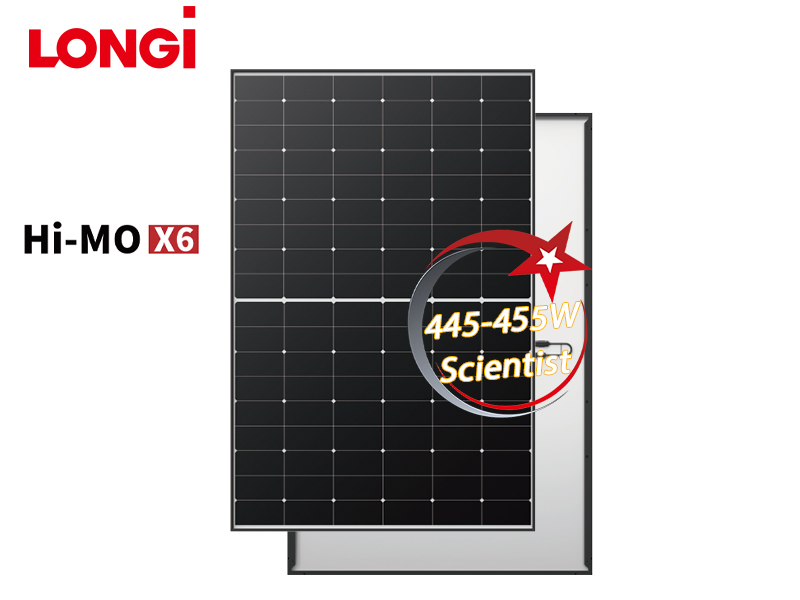

445W-455W Solar Panel
Electrical Specifications
Module Type |
LR5-54HTH-445M |
LR5-54HTH-450M |
LR5-54HTH-455M |
Testing Condition |
STC |
STC |
STC |
Maximum Power(Pmax/W) |
445 |
450 |
455 |
Open Circuit Voltage(Voc/V) |
39.73 |
39.93 |
40.13 |
Short Circuit Current (Isc/A) |
14.37 |
14.45 |
14.52 |
Voltage at Maximum Power(Vmp/V) |
33.44 |
33.64 |
33.84 |
Current at Maximum Power(Imp/A) |
13.31 |
13.38 |
13.45 |
Module Efficiency(%) |
22.8 |
23.0 |
23.3 |
590W-600W Solar Panel
Electrical Specifications
Module Type |
LR5-72HTH-590M |
LR5-72HTH-595M |
LR5-72HTH-600M |
Testing Condition |
STC |
STC |
STC |
Maximum Power(Pmax/W) |
590 |
595 |
600 |
Open Circuit Voltage(Voc/V) |
52.51 |
52.66 |
52.81 |
Short Circuit Current (Isc/A) |
14.33 |
14.40 |
14.46 |
Voltage at Maximum Power (Vmp/N) |
44.36 |
44.51 |
44.66 |
Current at Maximum Power(Imp/A) |
13.31 |
13.37 |
13.44 |
Module Efficiency(%) |
22.8 |
23.0 |
23.2 |

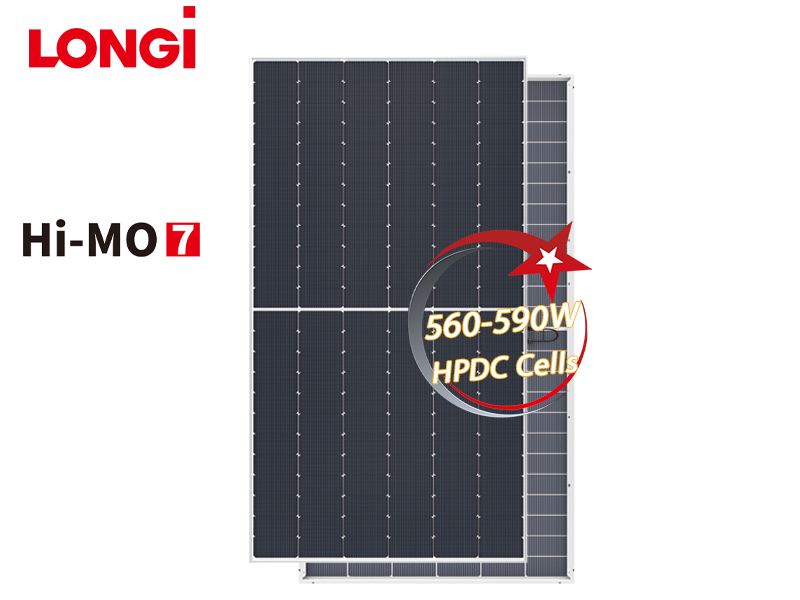

560W-590W Solar Panel
Electrical Specifications
Module Type |
LR5-72HGD-560M |
LR5-72HGD-570M |
LR5-72HGD-580M |
LR5-72HGD-585M |
LR5-72HGD-590M |
Testing Condition |
STC |
STC |
STC |
STC |
STC |
Maximum Power(Pmax/W) |
560 |
570 |
580 |
585 |
590 |
Open Circuit Voltage (Voc/V) |
50.99 |
51.19 |
51.41 |
51.52 |
51.63 |
Short Circuit Current (Isc/A) |
13.89 |
14.05 |
14.22 |
14.30 |
14.38 |
Voltage at Maximum Power(Vmp/V) |
42.82 |
43.00 |
43.22 |
43.33 |
43.44 |
Current at Maximum Power(Imp/A) |
13.08 |
13.26 |
13.42 |
13.51 |
13.59 |
Module Efficiency(%) |
21.7 |
22.1 |
22.5 |
22.6 |
22.8 |
590W-620W Solar Panel
Electrical Specifications
Module Type |
LR7-72HGD-590M |
LR7-72HGD-600M |
LR7-72HGD-605M |
LR7-72HGD-610M |
LR7-72HGD-620M |
Testing Condition |
STC |
STC |
STC |
STC |
STC |
Maximum Power(Pmax/W) |
590 |
600 |
605 |
610 |
620 |
Open Circuit Voltage(Voc/V) |
52.12 |
52.34 |
52.44 |
52.55 |
52.77 |
Short Circuit Current (Isc/A) |
14.37 |
14.53 |
14.61 |
14.69 |
14.85 |
Voltage at Maximum Power(Vmp/V) |
43.68 |
43.90 |
44.00 |
44.11 |
44.33 |
Current at Maximum Power(Imp/A) |
13.51 |
13.67 |
13.75 |
13.83 |
13.99 |
Module Efficiency(%) |
21.8 |
22.2 |
22.4 |
22.6 |
23.0 |
