N-type Module
Model: HP450W-ND
Dimension: 1762*1134*30 mm

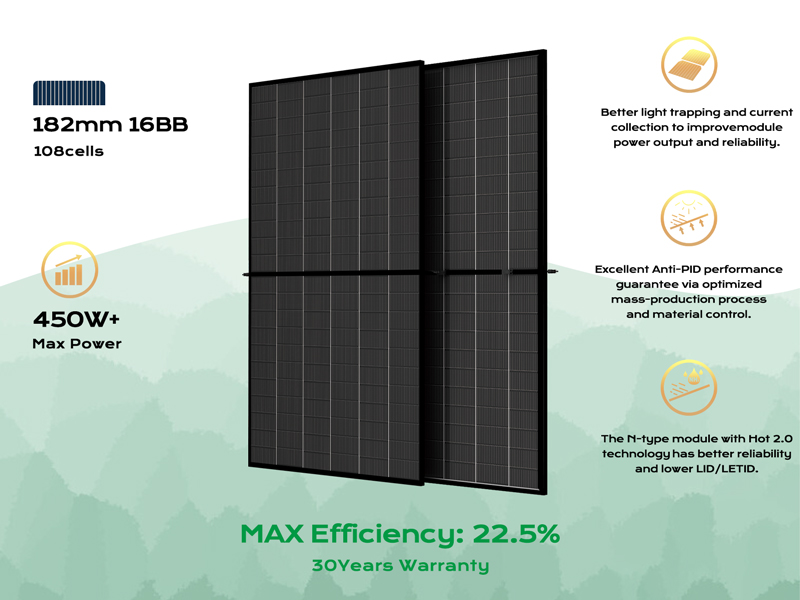

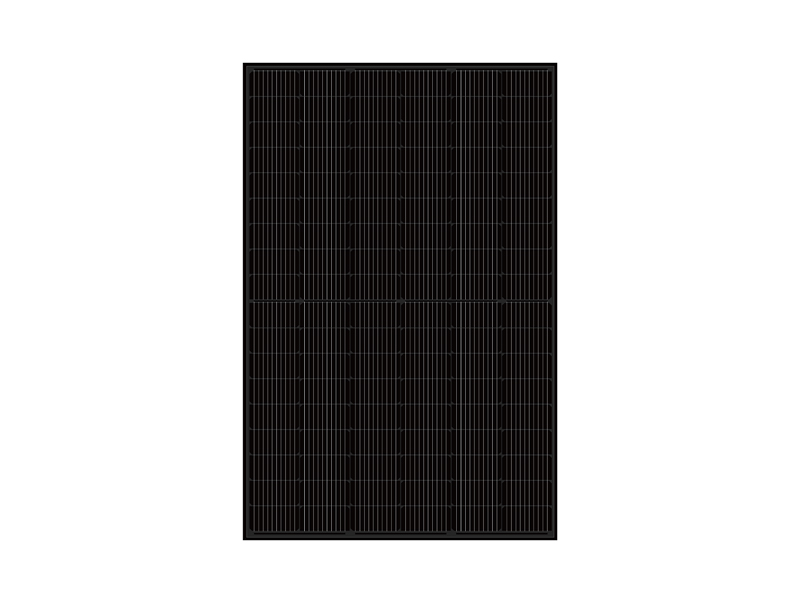

TOPCON Full Black Solar Panel
Power Range: 450W-470W
Transform your business with solar panel designed for optimal efficiency and resilience.
The competitive solar panel price makes it a cost-effective solution.
Install solar panels on the roof to maximize energy production.
These panels are resistant to ammonia corrosion, blowing sand, and other harsh conditions.
Benefit from advanced PID resistance, lower LCOE, reduced BOS costs, and a shorter payback time for a sustainable and economically viable energy solution.
ELECTRICAL DATA(STC) |
|||||
MODEL |
HP450W-ND |
HP455W-ND |
HP460W-ND |
HP465W-ND |
HP470W-ND |
Peak Power Watts-PMA×(Wp)* |
450 |
455 |
460 |
465 |
470 |
Power Output Tolerance-PMAX(W) |
0~+5 |
||||
MECHANICAL DATA |
1762*1134*30mm / 21kg |
||||
Maximum Power Voltage-VMPP(V) |
32.83 |
33.01 |
33.19 |
33.37 |
33.55 |
Maximum Power Current-IMPP(A) |
13.71 |
13.79 |
13.87 |
13.94 |
14.01 |
Open Circuit Voltage-Voc(V) |
39.30 |
39.50 |
39.70 |
39.90 |
40.10 |
Short Circuit Current-ksc(A) |
14.48 |
14.57 |
14.66 |
14.74 |
14.83 |
Module Efficiency(%) |
22.5 |
22.8 |
23.0 |
23.3 |
23.5 |
Solar Cell
Our solar panels rely on Tier 1 solar cells from reputable brands like Longi, TW Solar, and Jinko Solar. Boasting high efficiency and uniform color, these cells feature advanced technology.
Before the production of solar panels, each individual solar cell undergoes meticulous inspection and sorting.
Production Equipment
Effortless Frame and Silicone Application:
Experience effortless manufacturing with our production equipment,
featuring the third-generation line optimized for Half Cut Solar Cells,
including the 166, 182, and 210 cell options.
The machine-driven application of frames and silicone adds finesse to the process, ensuring both efficiency and quality.
Auxiliary materials and accessories
Traceable Excellence in Production:
Achieve traceable excellence in solar panel production with the use of high-quality auxiliary materials. Follow our standard production process to guarantee traceability,
and rely on the double assurances of machine detection and manual checks for an end product of exceptional quality.
