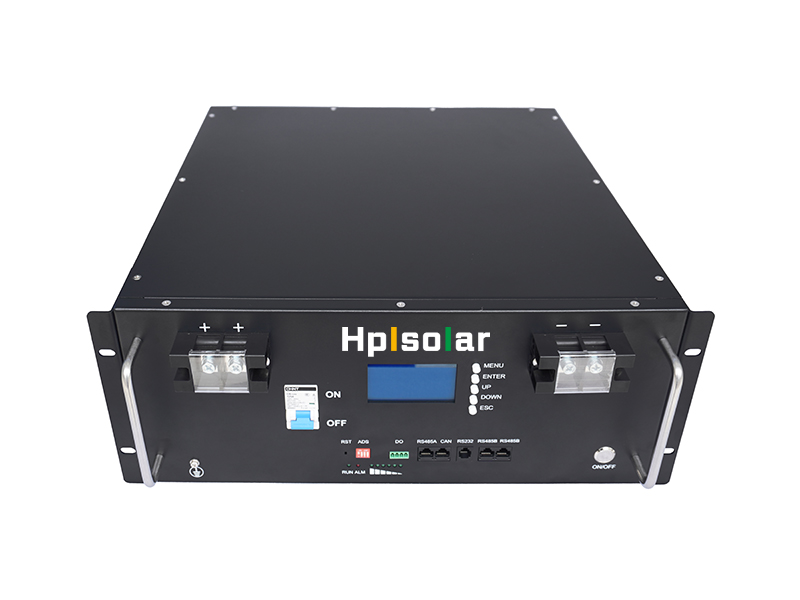

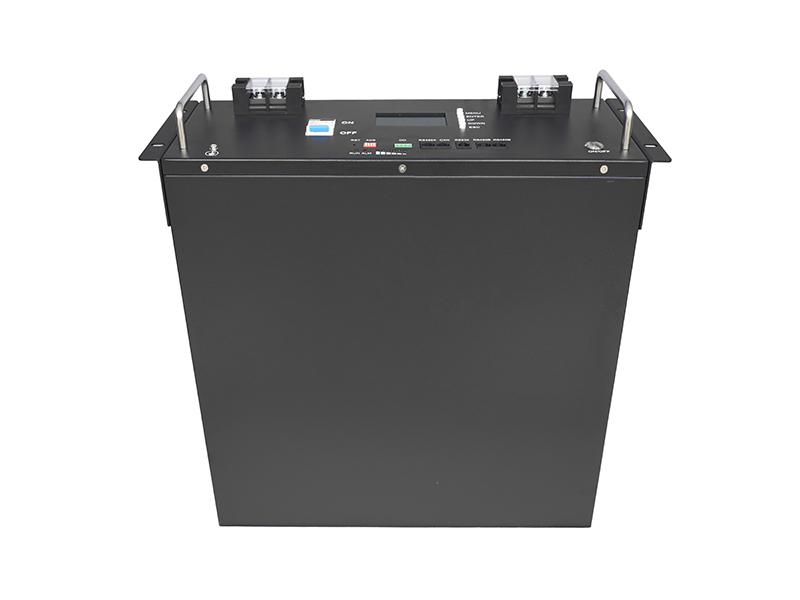

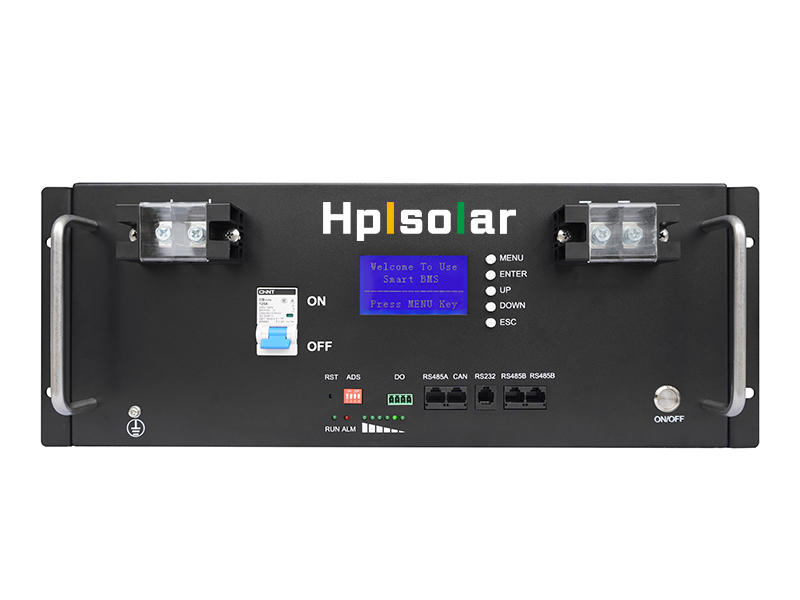

Model of Products: HP - LB51200R
Hope Light Solar battery tailored for 48V energy storage systems,
the lithium-ion battery module is a specialized solution that can function independently or in parallel.
The module is equipped with time-saving EU-certified easy connectors,
streamlining the installation process for professionals.
BMS protocol has matched Growatt, SMA, Deye, Goodwe, Sofar, Solis,
Victron, INVT, BBB, Voltronic, Schneider, Sungrow, SAJ, LUX power, etc.
|
MODEL NO |
HP - LB51200R |
|
|
Battery Chemistry |
LiFePO4 |
|
|
Capacity (Ah) |
100 |
|
|
Scalability |
Max.16pcs in parallel (160kWh) |
|
|
Nominal Voltage (V) |
51.2 |
|
|
Operating Voltage(V) |
46-56 |
|
|
Energy (kWh) |
5.12 |
|
|
Usable Energy (kWh) |
4.61 |
|
|
Charge/Discharge Current (A) |
Recommend |
80 |
|
Max. |
100 |
|
|
Peak(2mins,25℃) |
100 |
|
|
Other Parameter |
||
|
Recommend Depth of Discharge |
90% |
|
|
Dimension (W/H/D,mm) |
483*680*178 |
|
|
Weight Approximate (kg) |
87 |
|
|
IP Rating of Enclose |
IP20 |
|
|
Working Temperature |
Charge:0℃~55℃ Discharge:-20℃~55℃ |
|
|
Storage Temperature |
0℃~35℃ |
|
|
Humidity |
5%~95% |
|
|
Altitude |
≤2000m |
|
|
Cycle Life (25±2℃,0.5C/0.5C,80%EOL) |
≥6600 |
|
|
Installation |
19inch Rack-mounted |
|
|
Communication Port |
CAN2.0, RS485 |
|
|
Warranty Period |
15 years |
|
|
Life Cycle Power During Warranty Period |
45MWh@80% EOL |
|
|
Certification |
UL1973, CB-IEC62619, CE-EMC, MSDS, UN38.3 |
|
