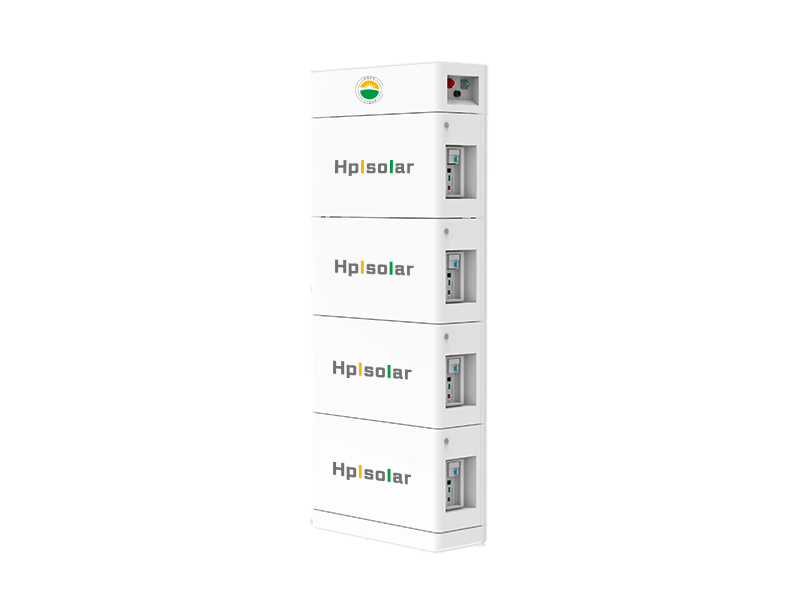

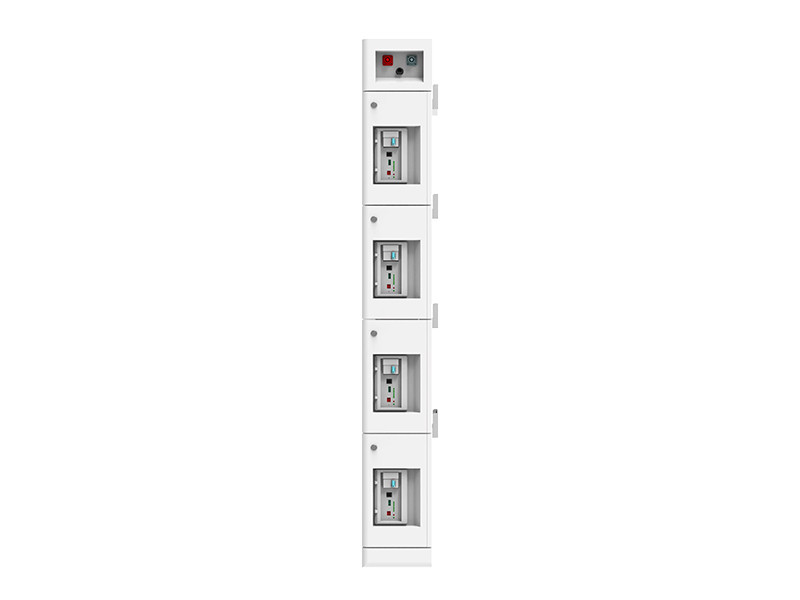

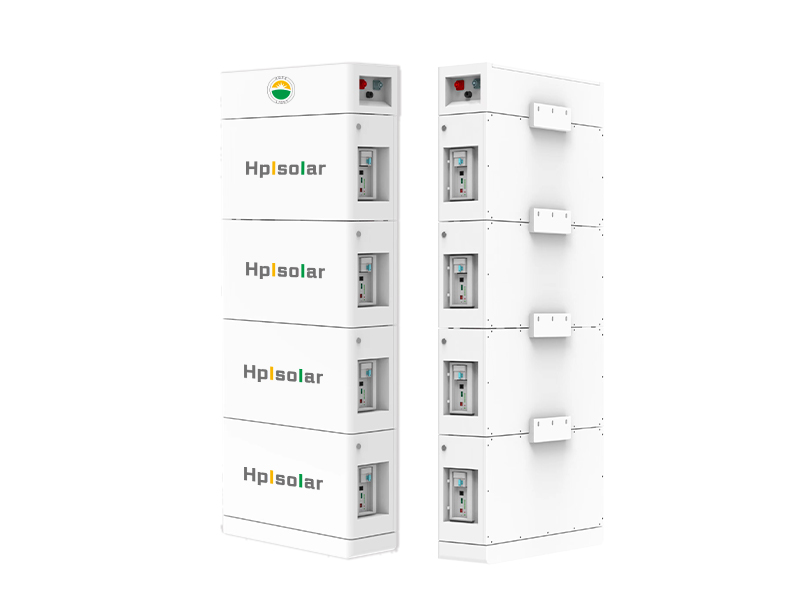

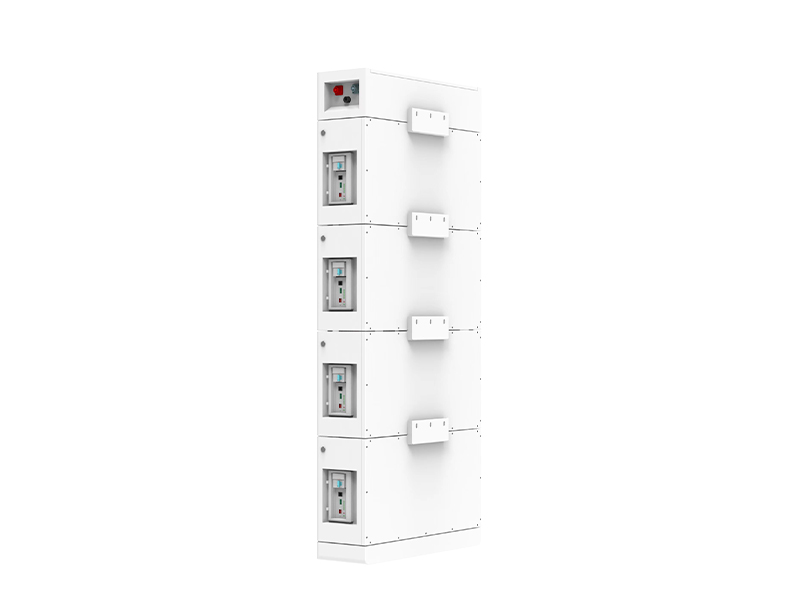

Model of Products: HP - LB51100S
The stack-able lithium battery module is perfect for residential solar power setups.
Featuring a superior energy density and versatile mounting options, the module efficiently utilizes space for various installation configurations.
Its modular design is tailored to adapt to changing energy needs, ensuring that it can meet both current and future power requirements.
BMS protocol has matched Growatt, SMA, Deye, Goodwe, Sofar, Solis, Victron, INVT, BBB, Voltronic, Schneider, Sungrow, SAJ, LUX power, etc.
MODEL NO |
HP - LB51100S |
|
Battery Chemistry |
LiFePO4 |
|
Capacity (Ah) |
100 |
|
Scalability |
Max.16pcs in parallel (82kWh) |
|
Nominal Voltage (V) |
51.2 |
|
Operating Voltage(V) |
46-56 |
|
Energy (kWh) |
5.12 |
|
Usable Energy (kWh) |
4.61 |
|
Charge/Discharge Current (A) |
Recommend |
100 |
Max. |
100 |
|
Maximum Discharge C rate |
1C |
|
Other Parameter |
||
Recommend Depth of Discharge |
90% |
|
Dimension (W/H/D,mm) |
630*185*345 |
|
Weight Approximate (kg) |
45 |
|
IP Rating of Enclose |
IP20 |
|
Working Temperature |
Charge:0℃~55℃ Discharge:-20℃~55℃ |
|
Storage Temperature |
0℃~35℃ |
|
Humidity |
5%~95% |
|
Altitude |
≤2000m |
|
Cycle Life (25±2℃,0.5C/0.5C,80%EOL) |
≥6600 |
|
Installation |
Stack-able |
|
Communication Port |
CAN2.0, RS485 |
|
Warranty Period |
10- years |
|
Certification |
UL1973, CB-IEC62619, CE-EMC, MSDS, UN38.3 |
