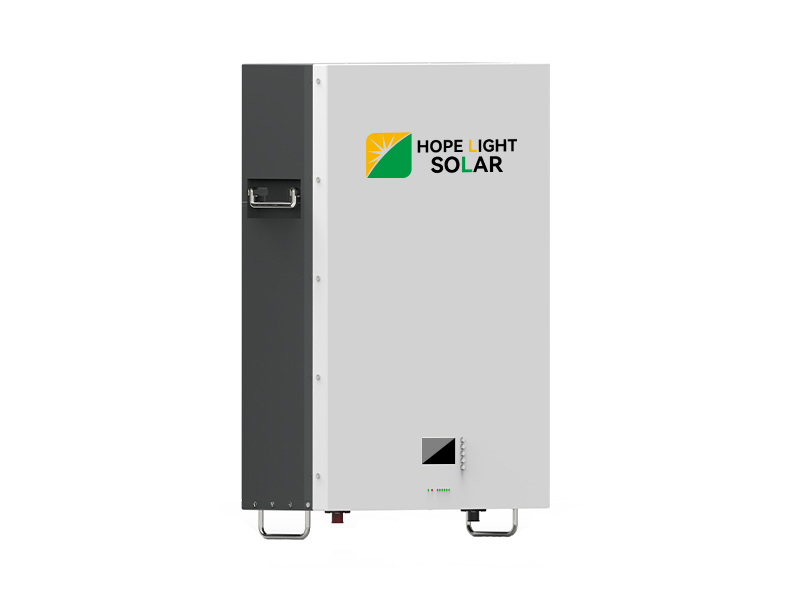

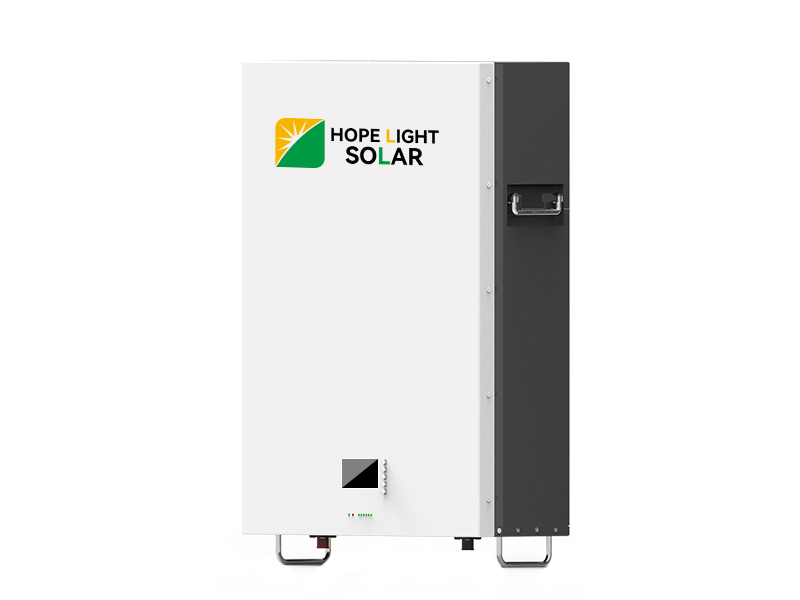

Model of Products: HP - LB51200W
Powerwall is a lithium battery that can store energy,
detect power outages and provide backup energy when the power grid fails.
It uses sunlight to automatically charge form a solar and battery system .
By setting charging and discharging time,
you can take advantage of differences in electricity prices to earn profits.
BMS protocol has matched Growatt, SMA, Deye, Goodwe, Sofar, Solis,
Victron, INVT, BBB, Voltronic, Schneider, Sungrow, SAJ, LUX power, etc.
MODEL NO |
HP-LB51100W |
HP-LB51200W |
|
Battery Chemistry |
LiFePO4 |
||
Capacity (Ah) |
100 |
200 |
|
Scalability |
Max.16pcs in |
Max.16pcs in |
|
Nominal Voltage (V) |
51.2 |
||
Operating Voltage (V) |
46-56 |
||
Energy (kWh) |
5.12 |
10.24 |
|
Usable Energy (kWh) |
4.61 |
9.22 |
|
Charge/Discharge |
Recommend |
50 |
100 |
Max. |
100 |
150 |
|
Peak |
120 |
200 |
|
(2mins 25℃) |
|||
Other Parameter |
|||
Recommend Depth of |
80% |
||
Dimension (W/H/D,mm) |
480*615*160 |
550*720*200 |
|
Weight Approximate (kg) |
62 |
102 |
|
|
2 LED (working, alarming, protecting) |
||
IP Rating of Enclose |
IP20 |
||
Working Temperature |
Charge:0℃~55℃ |
||
Discharge:-20℃~55℃ |
|||
Storage Temperature |
0℃~35℃ |
||
Humidity |
5%~95% |
||
Altitude |
≤2000m |
||
Cycle Life (25±2℃, 0.5C/0.5C, 80%EOL) |
≥6600 |
||
Installation |
Wall mounted |
||
Communication Port |
CAN2.0, RS485 |
||
Warranty Period |
10 years |
||
Life Cycle Power During |
|||
Certification |
IEC62619, CE-EMC, |
||
MSDS, UN38.3, |
|||
UL, CEI-021 |
