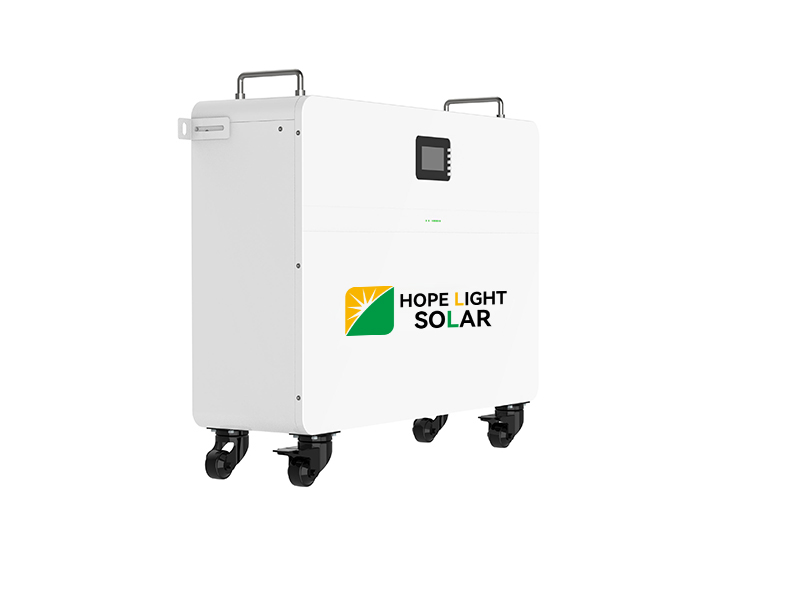

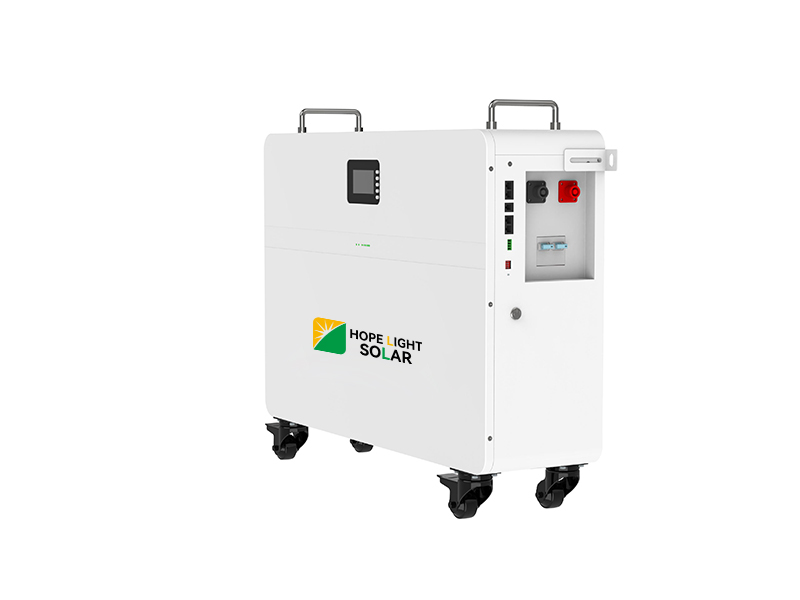

Model of Products: HP - LB51280W
Large-capacity lithium batteries solve the problem of storing power
in some high-consumption households and can be used in parallel.

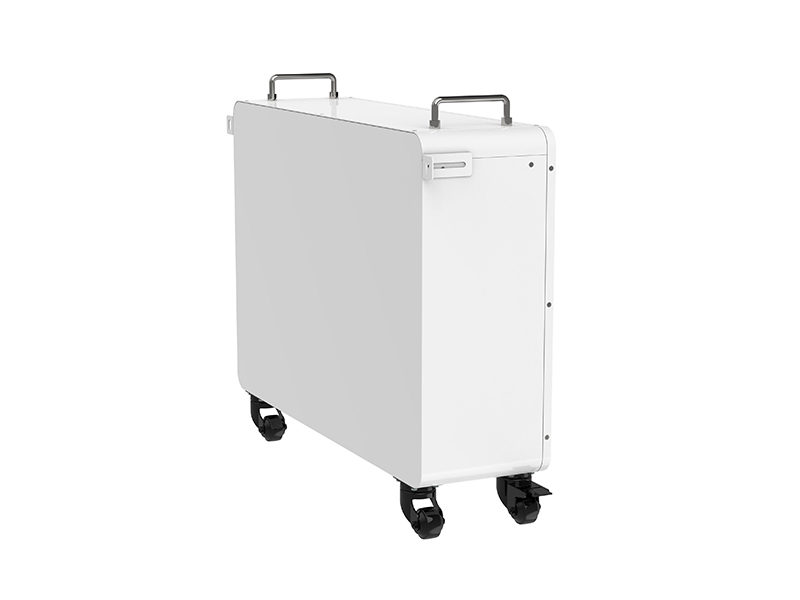

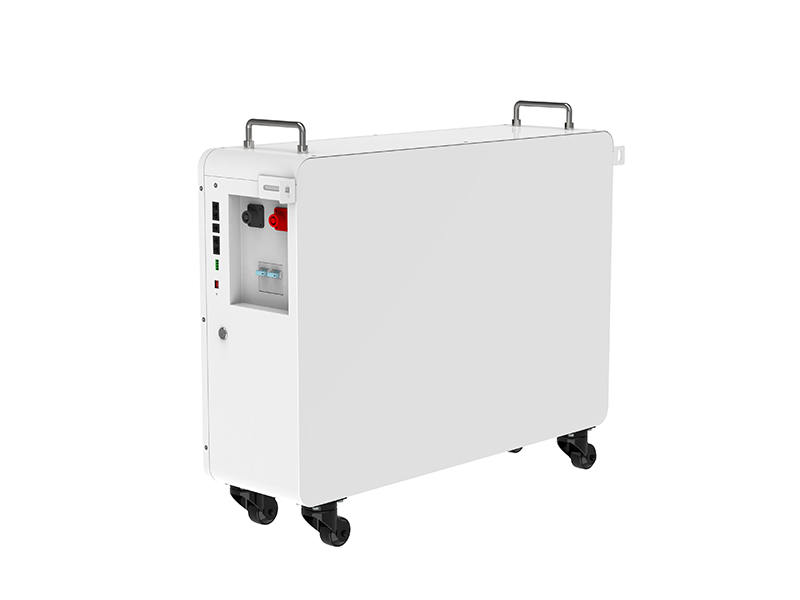

Designed with wheels, very convenient for installation and movement.
BMS protocol has matched Growatt, SMA, Deye, Goodwe, Sofar, Solis,
Victron, INVT, BBB, Voltronic, Schneider, Sungrow, SAJ, LUX power, etc.
MODEL NO |
HP - LB51280W |
|
Battery Chemistry |
LiFePO4 |
|
Capacity (Ah) |
280 |
|
Scalability |
Max.16pcs in parallel (262kWh) |
|
Nominal Voltage (V) |
51.2 |
|
Operating Voltage(V) |
46-56 |
|
Energy (kWh) |
14.34 |
|
Usable Energy (kWh) |
13.1 |
|
Charge/Discharge Current (A) |
Recommend |
100 |
Max. |
150 |
|
Peak(2mins,25℃) |
200 |
|
Other Parameter |
||
Recommend Depth of Discharge |
80% |
|
Dimension (W/H/D,mm) |
780*240*500 |
|
Weight Approximate (kg) |
128.5 |
|
IP Rating of Enclose |
IP20 |
|
Working Temperature |
Charge:0℃~55℃ Discharge:-20℃~55℃ |
|
Storage Temperature |
0℃~35℃ |
|
Humidity |
5%~95% |
|
Altitude |
≤2000m |
|
Cycle Life (25±2℃,0.5C/0.5C,80%EOL) |
≥6600 |
|
Installation |
Wheel |
|
Communication Port |
CAN2.0, RS485 |
|
Warranty Period |
15 years |
|
Life Cycle Power During Warranty Period |
89.68MWh@80% EOL |
|
Certification |
UL1973, CB-IEC62619, CE-EMC, MSDS, UN38.3 |
