High Voltage Lithium Battery 10KWH 20KWH 25KWH Stackable
Stackable lithium battery
25kw lithium battery
lithium battery stackable
high voltage lithium battery solar
Lithium battery

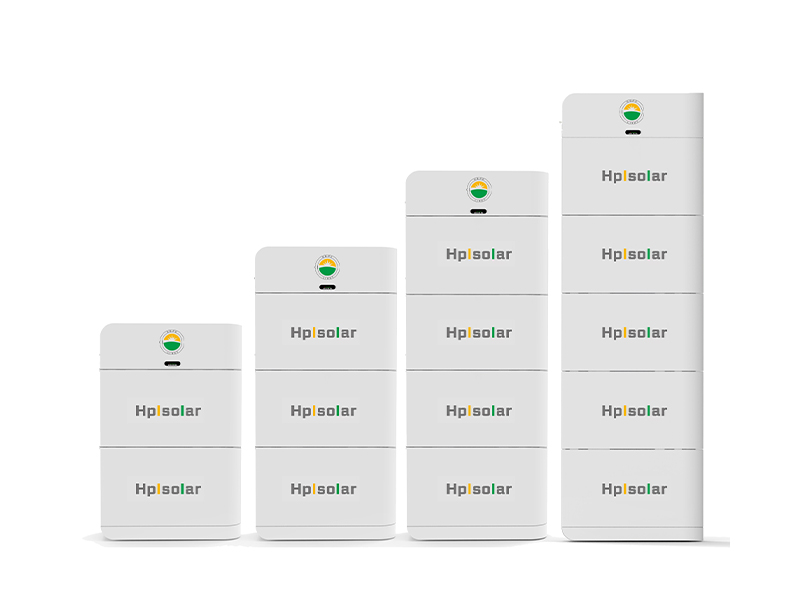

High Voltage Lithium Battery 10KWH 20KWH 25KWH Stackable

Model of Products: HP - HB10000S

                                 HP - HB20000S

                                 HP - HB25000S



Hope Light Solar power storage lithium battery adopts the latest BESS battery system.

With rich experience and advanced techniques,

this kind of home battery provides house backup for emergency and normal consumption,

Fashionable design, high energy, high power density, long service life, and easy to installation and expansion.

Our ESS can provide comprehensive energy storage for residential, commercial and utility applications.

Our Li-ion battery portfolio covers cells, modules, cabinets (indoor/outdoor) and containers,

which offer customers excellent scalability and adaptability to a wide variety of requirements.

BMS protocol has matched Growatt, SMA, Deye, Goodwe, Sofar, Solis,

Victron, INVT, BBB, Voltronic, Schneider, Sungrow, SAJ, LUX power, etc.





MODEL NO

HP-HB15000S

HP-HB20000S

HP-HB25000S

Battery Chemistry

LiFePO4

Capacity (Ah)

50

Nominal Voltage (V)

307.2V

409.6V

512V

Energy (kWh)

15

20

25

Internal Resistance

≤60mΩ

Cycle Life

≥5000 cycles @80% DOD, 25℃, 0.5C

≥4000 cycles @80% DOD, 40℃, 0.5C

Design Life

≥10 years

Charge Cut-off Voltage

304V±2V

405V±2V

560V±2V

Max.Continuous Work Current

100A

Discharge Cut-off Voltage

270V±2V

350V±2V

448V±2V

Charge Temperature

0℃~60℃

Discharge Temperature

-20℃~60℃

Storage Temperature

-40℃~55℃ @ 60%±25% relative humidity

Dimension (W/H/D,mm)

630*185*1035

630*185*1380

630*185*1725

Weight Approximate (kg)

Approx:150kg

Approx:200kg

Approx:250kg

Life Cycle Power During Warranty Period

RS232-PC,RS485(B)-PC RS485(A)-Inverter,Canbus-Inverter

Certification

UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)
