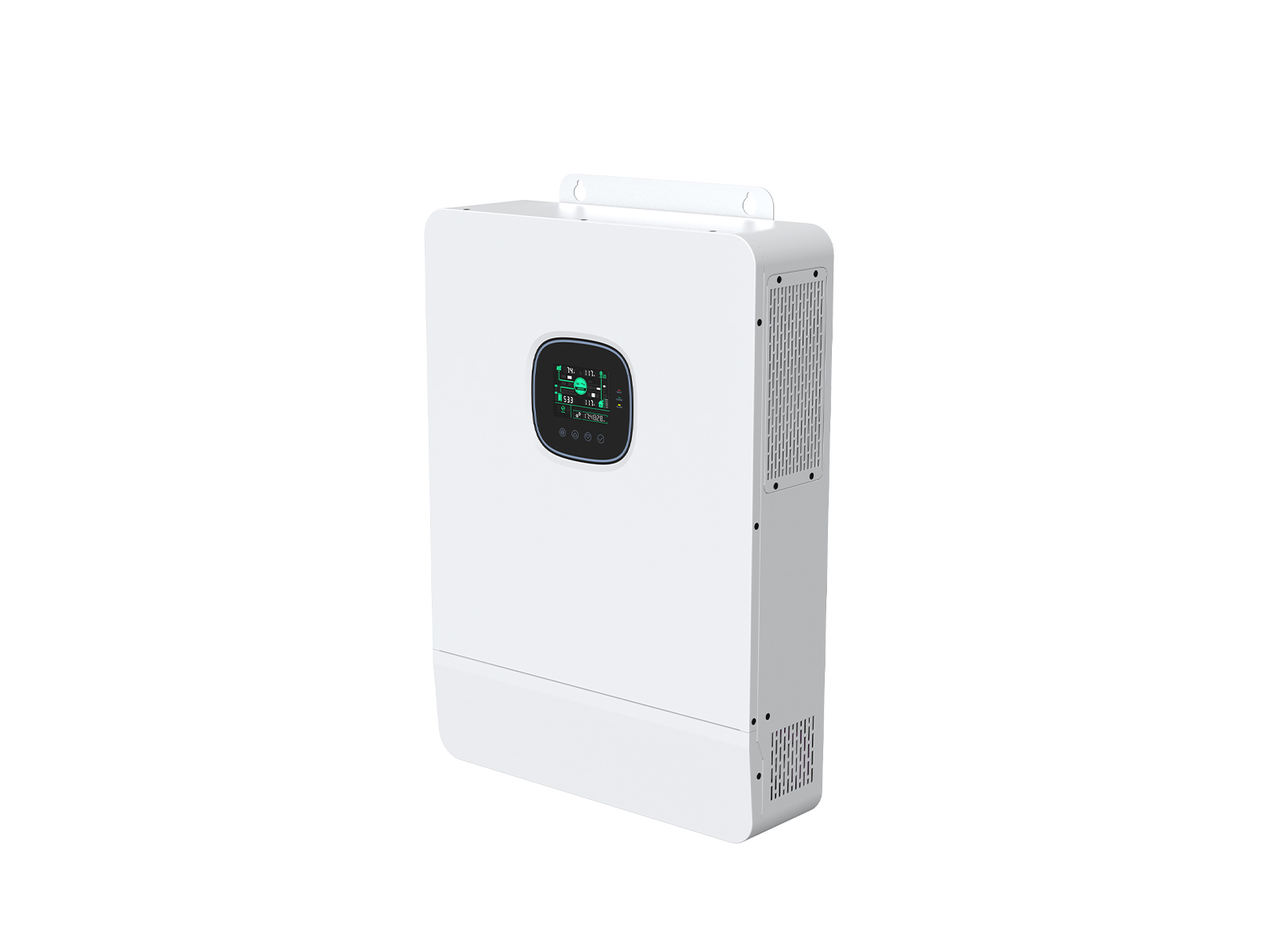

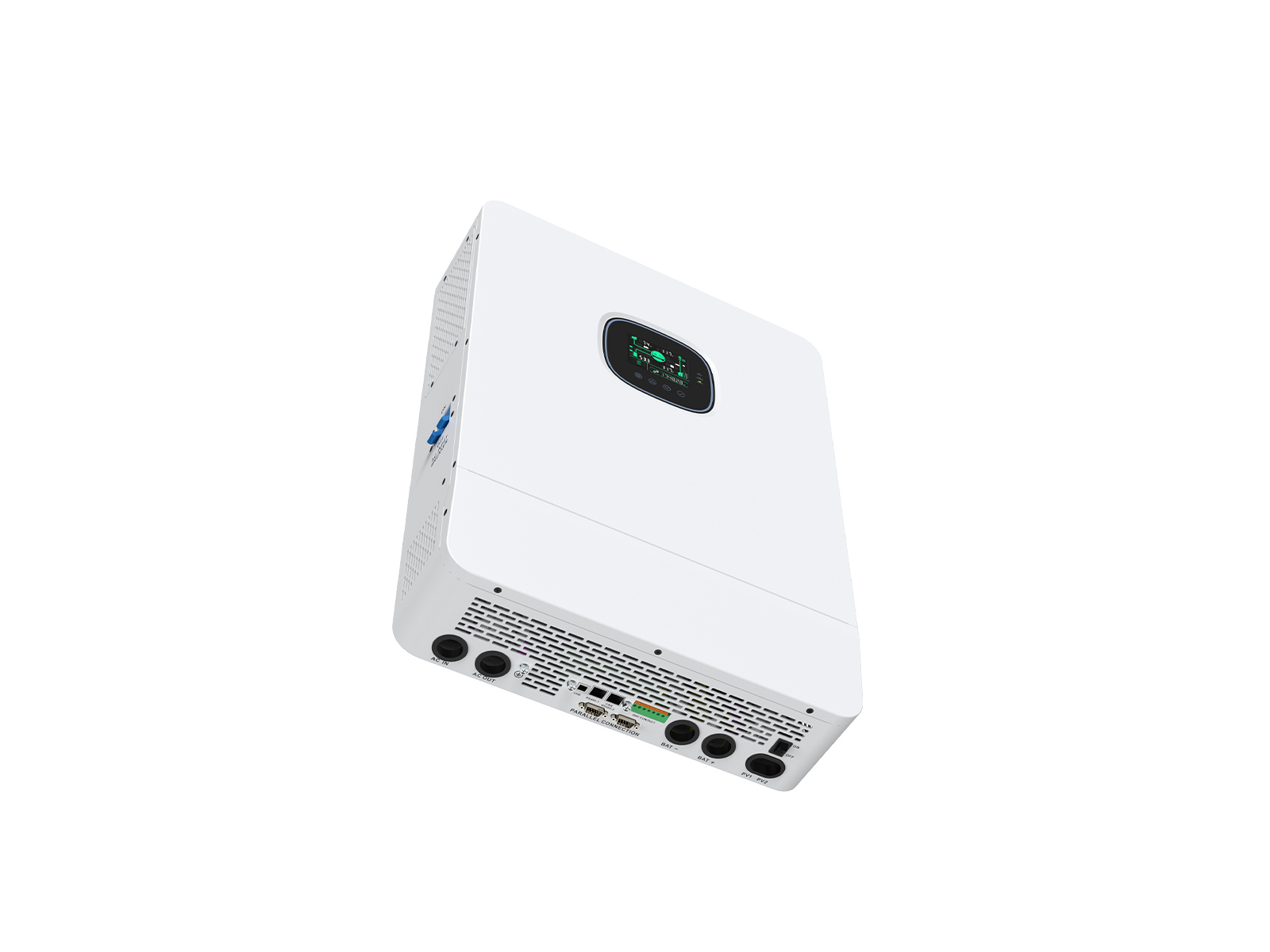

Solar Inverter Hybrid and Off Grid 8kw 10kw for Home Solar Panel System

SPECIFICATION

HPI-8kw 10kw series

Programmable

INVERTER OUTPUT

Rated Output Power

10,000W

Max. Peak Power

15,000W

Rated Output Voltage

230Vac (single-phase)

/110-220V split phase

✔

Load Capacity of Motors

6HP

Rated AC Frequency

50/60Hz

✔

Waveform

Pure Sine Wave

Switch Time

10ms(typical)

Parallel capacity

1~6 units (single-phase / three-phase)

BATTERY

Battery Type

Li-ion/Lead-Acid/ User Defined

✔

Rated Battery Voltage

48Vdc

Voltage Range

40~60Vdc

✔

Max. MPPT Charging Current

200A

✔

Max. Mains/Generator

Charging Current

120A

✔

Max. Hybrid Charging Current

200A

✔

PV INPUT

Num. of MPP Trackers

2

Max. PV array power

5,500W + 5,500W

Max. input current

22A +22A

Max. Voltage of Open Circuit

500Vdc + 500Vdc

MPPT Voltage Range

125~425Vdc+125~425Vdc

MAINS/GENERATOR INPUT

    Input Voltage Range                                     90~275Vac                           ✔

    Frequency Range                                            50/60Hz

    Bypass Overload Current                                   63A

EFFICIENCY

    MPPT Tracking Efficiency                                  99.9%

    Max. Battery Inverter Efficiency                          92%

GENERAL

Dimensions

620*445*130mm

Weight

27kg

Protection Degree

IP20, Indoor Only

Operating Temperature Range

-10-55℃,>45℃ derated

Noise

<60dB

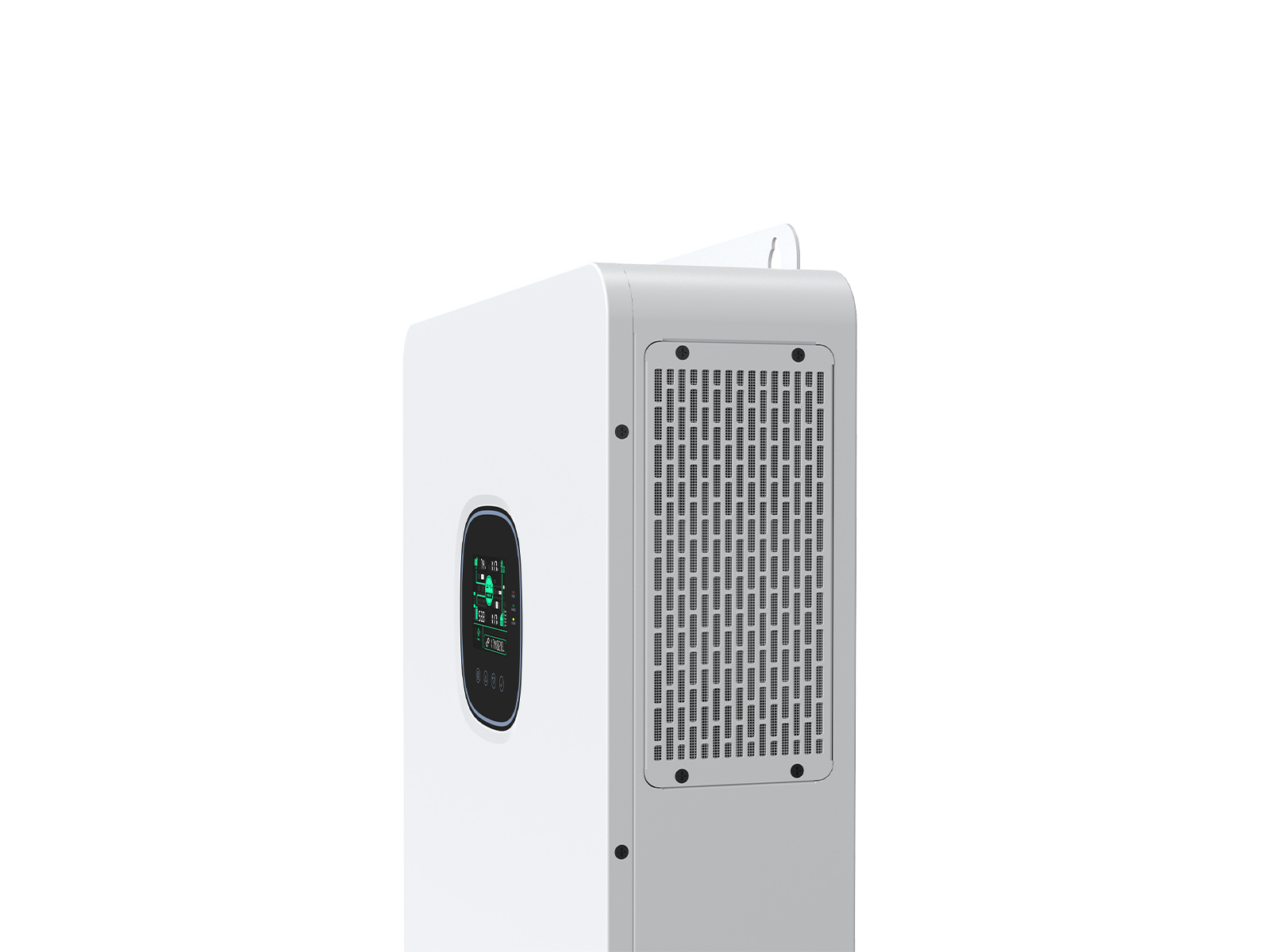

Cooling Method

Internal Fan

Warranty

18 Months

COMMUNICATION

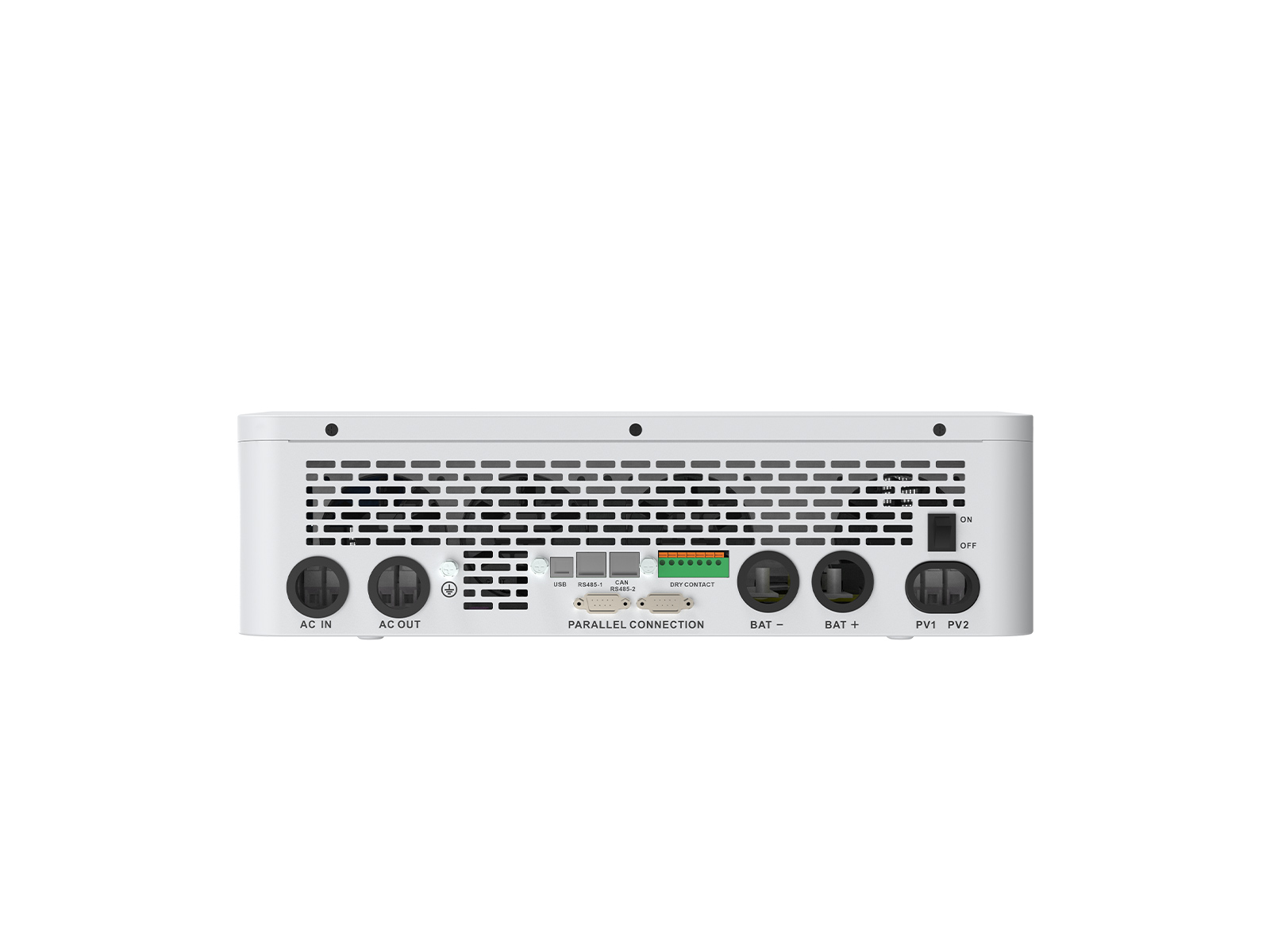

Embedded Interfaces

RS485/CAN/USB/Dry contact

✔

External Modules (Optional)

Wi-Fi/GPRS

✔

CERTIFICATION

Safety

IEC62109-1,IEC62109-2

EMC

EN61000-6-1, EN61000-6-3,

FCC 15 class B

Other

CE, RoHS, CEI-021, VDE, UL
