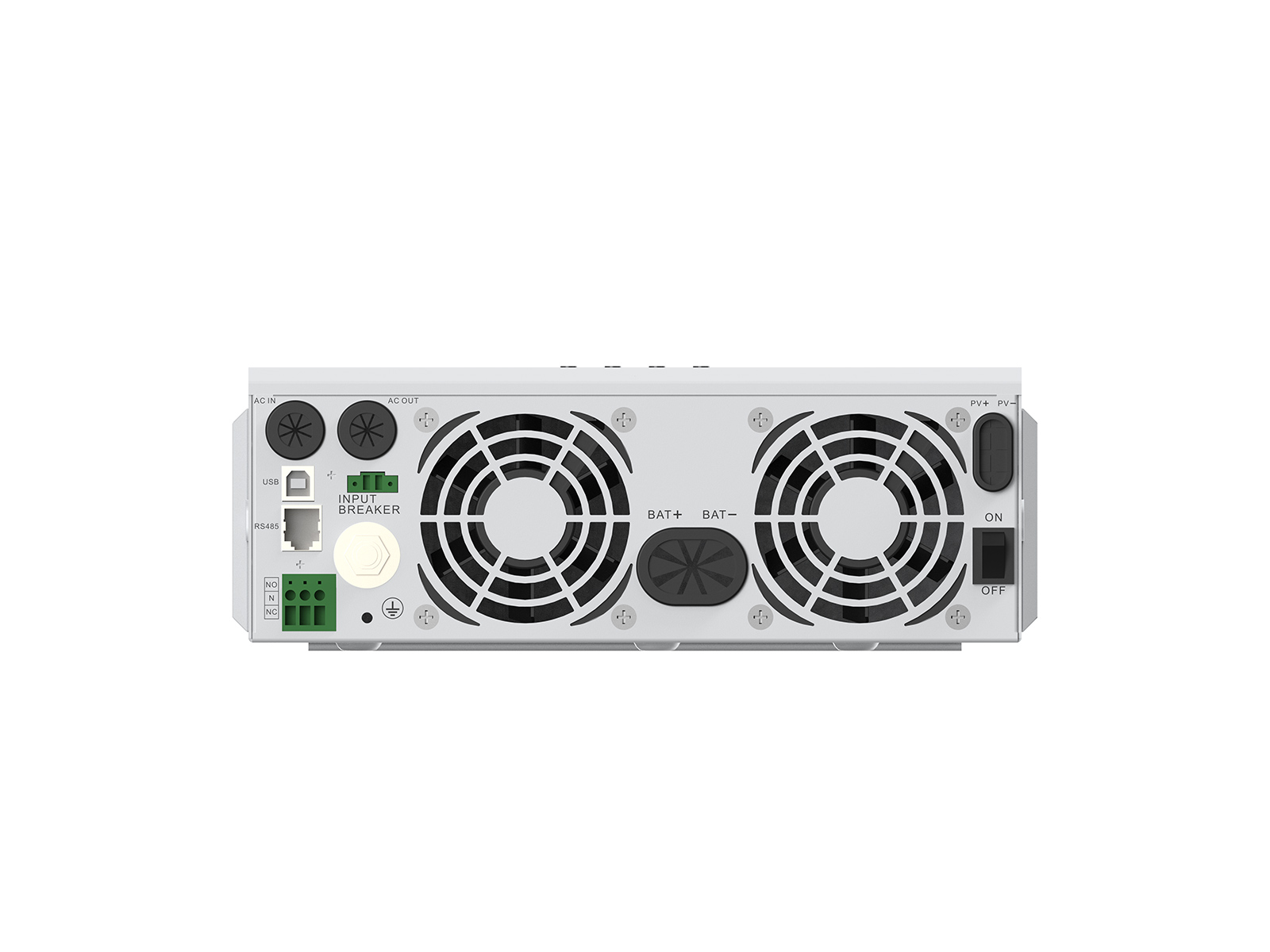

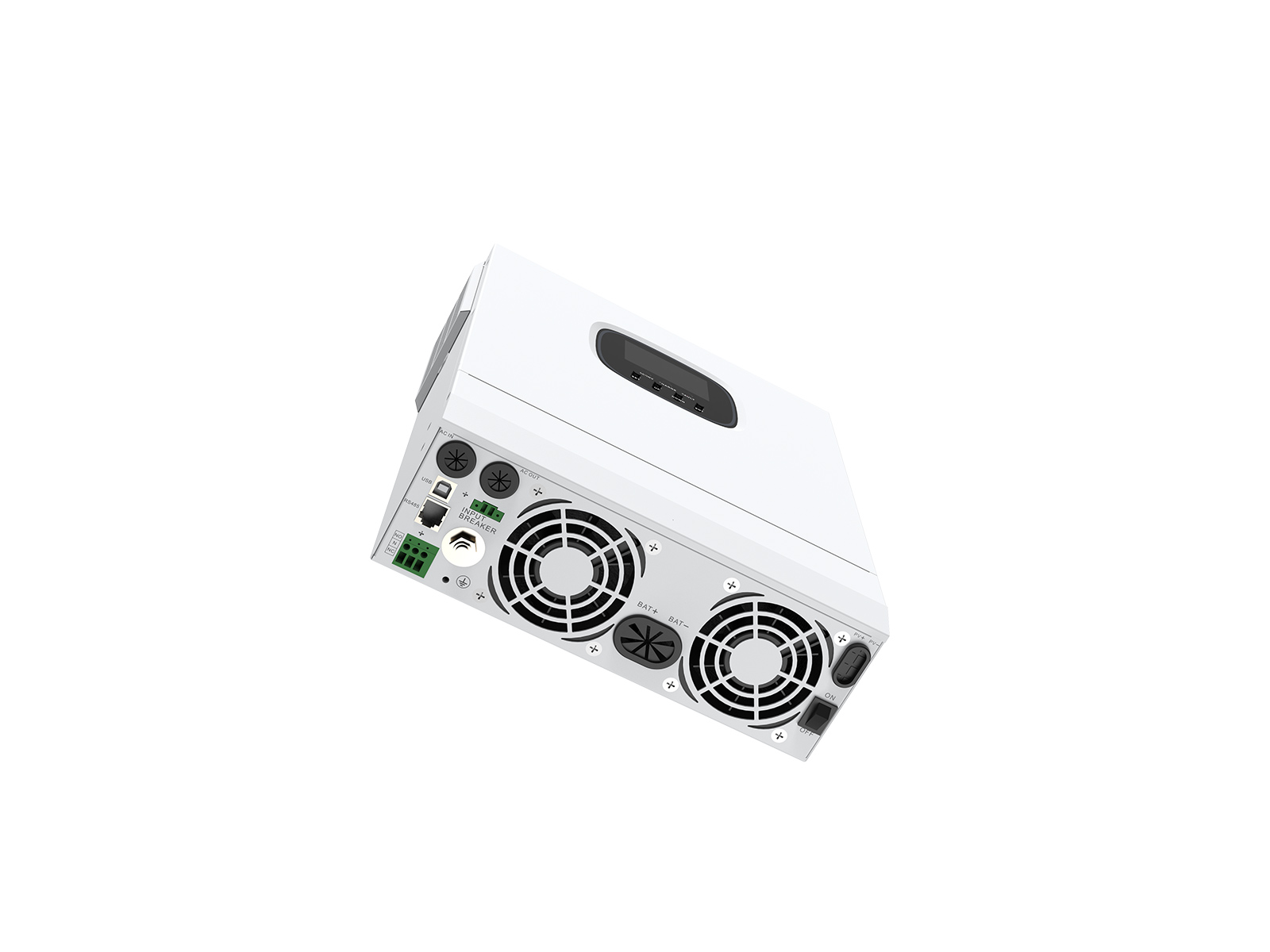

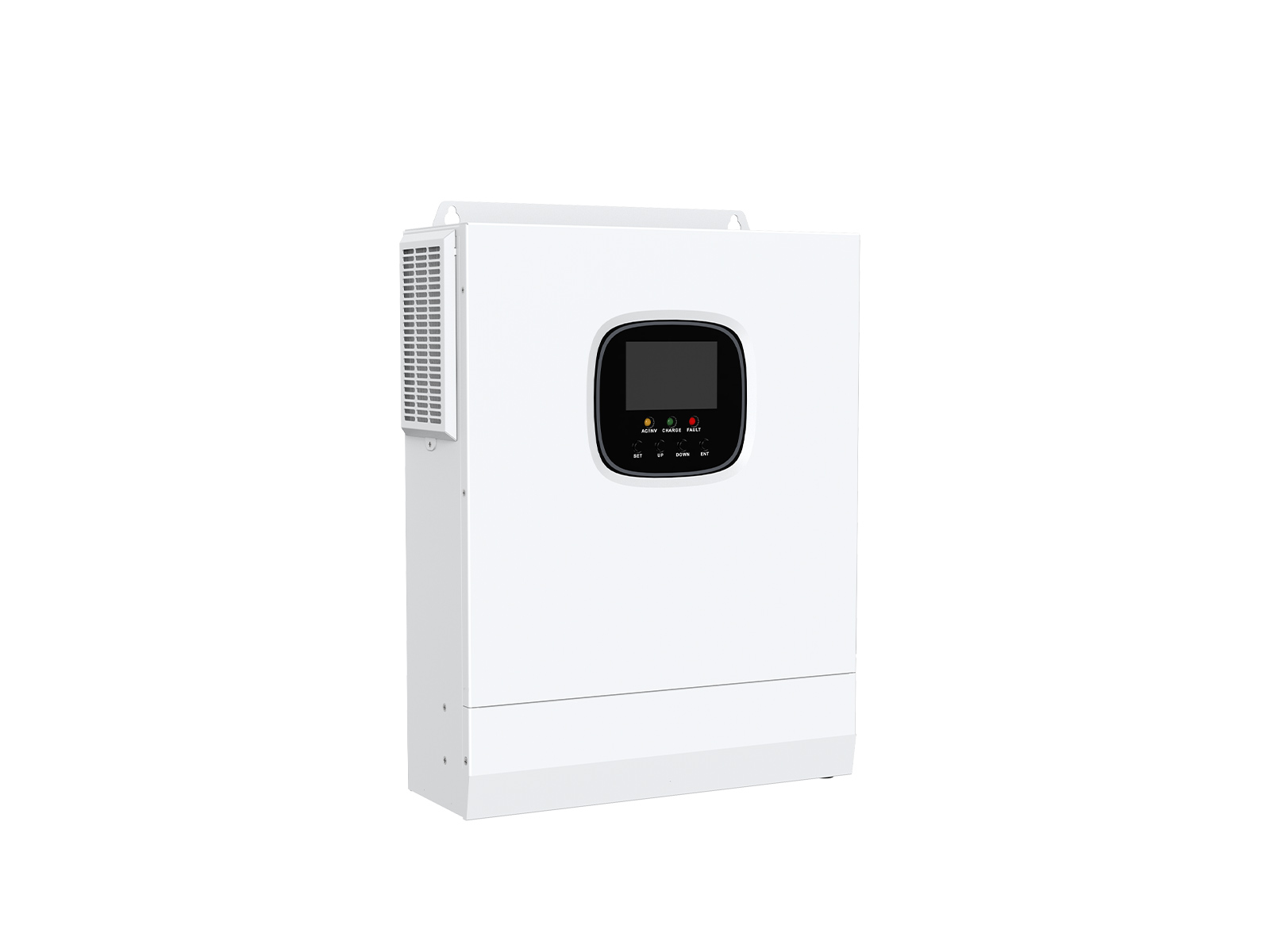

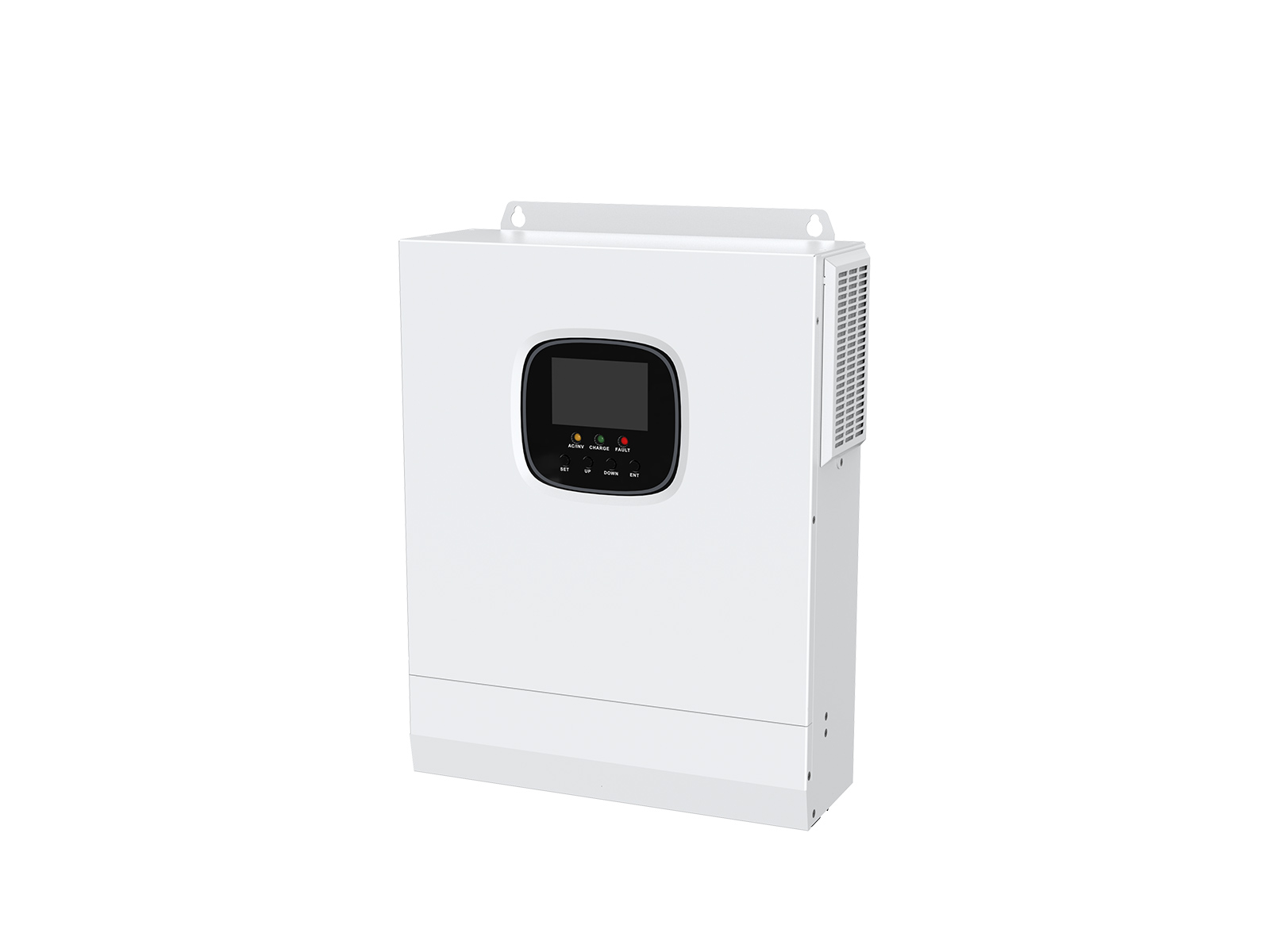

Solar Inverter Hybrid and Off Grid 3kw 5kw for Home Solar Panel System

Hybrid and off grid Solar Inverter

Power Range: 3KW/5KW

Parallel function ,

Single phase output : 220V-240Vac

US version : 110-220V split phase

OEM and ODM free

Wifi monitor , Smart APP

Solar Panel Power: 200W -710W





Efficiency

Advanced MPPT technology with up to 99.9% efficiency

Up to 22A PV input current



User-Friendly

Industrial design with a modern aesthetic look

Easy to install and simple to use



Intelligent

Exclusive Li-ion battery BMS dual activation

Time-slot function to save cost with peak-valley





SPECIFICATION

HPI-8kw 10kw series

Programmable

INVERTER OUTPUT

Rated Output Power

5,000W



Max. Peak Power

10,000VA



Rated Output Voltage

230Vac (single-phase)

/110-220V split phase

Load Capacity of Motors

4HP



Rated AC Frequency

50/60Hz

Waveform

Pure Sine Wave



Switch Time

10ms(typical)



Parallel capacity

1~6 units (single-phase / three-phase)



BATTERY

Battery Type

Li-ion/Lead-Acid/ User Defined

Rated Battery Voltage

48Vdc



Voltage Range

40~60Vdc

Max. MPPT Charging Current

100A

Max. Mains/Generator

Charging Current

50A

Max. Hybrid Charging Current

100A

PV INPUT



Num. of MPP Trackers

1



Max. PV array power

5,500W



Max. input current

22A



Max. Voltage of Open Circuit

500Vdc



MPPT Voltage Range

125~425Vdc



MAINS/GENERATOR INPUT

    Input Voltage Range                                     90~280Vac                           ✔

    Frequency Range                                            50/60Hz

    Bypass Overload Current                                   40A

EFFICIENCY

    MPPT Tracking Efficiency                                  99.9%

    Max. Battery Inverter Efficiency                          92%

GENERAL

Dimensions

446.9*350*133mm



Weight

13kg



Protection Degree

IP20, Indoor Only



Operating Temperature Range

-10-55℃,>45℃ derated



Noise

<60dB



Cooling Method

Internal Fan



Warranty

18 Months



COMMUNICATION

Embedded Interfaces

RS485/CAN/USB/Dry contact

External Modules (Optional)

Wi-Fi/GPRS

CERTIFICATION

Safety

IEC62109-1,IEC62109-2



EMC

EN61000-6-1, EN61000-6-3,

FCC 15 class B



Other

CE, RoHS, CEI-021, VDE, UL
