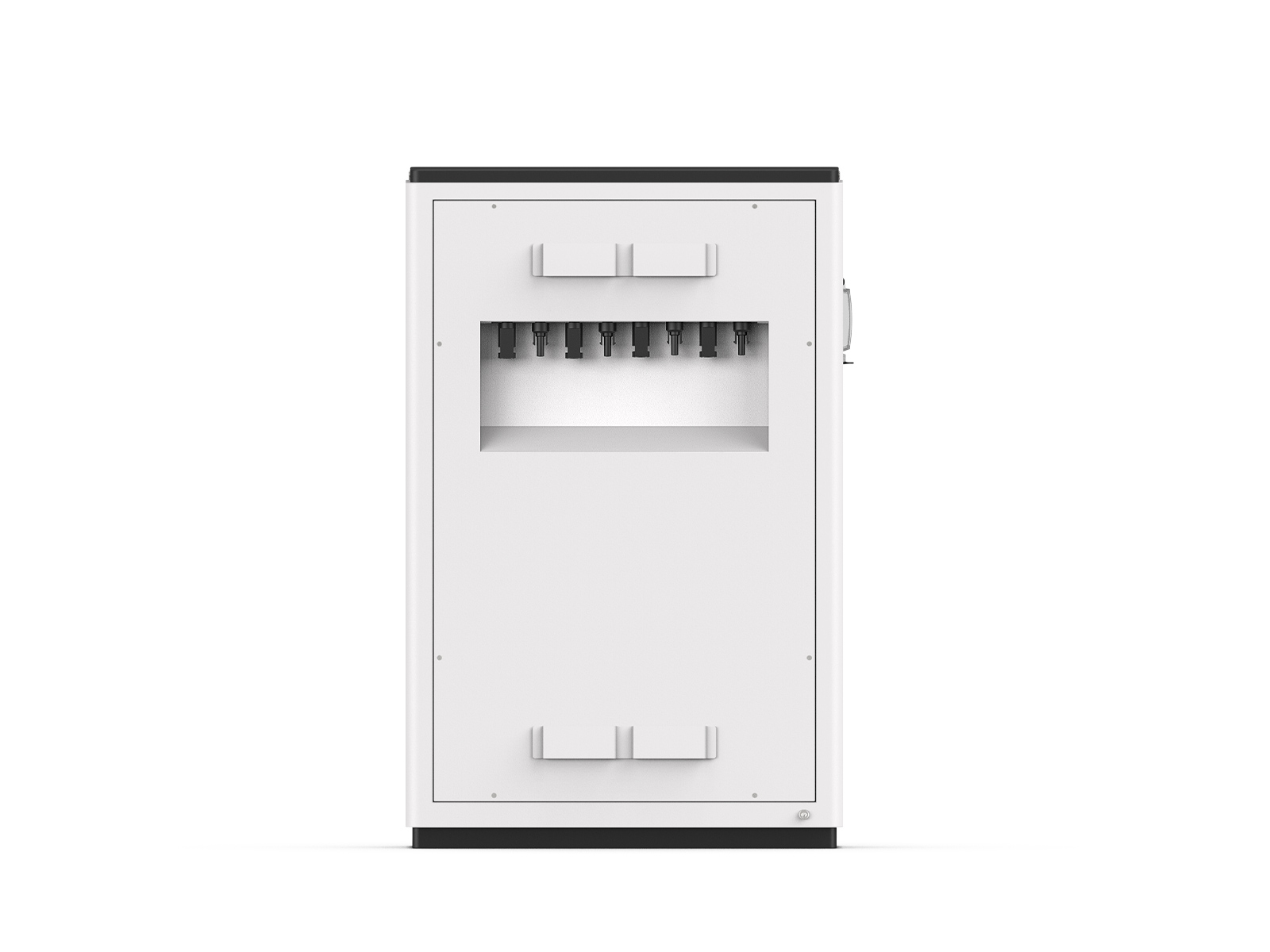

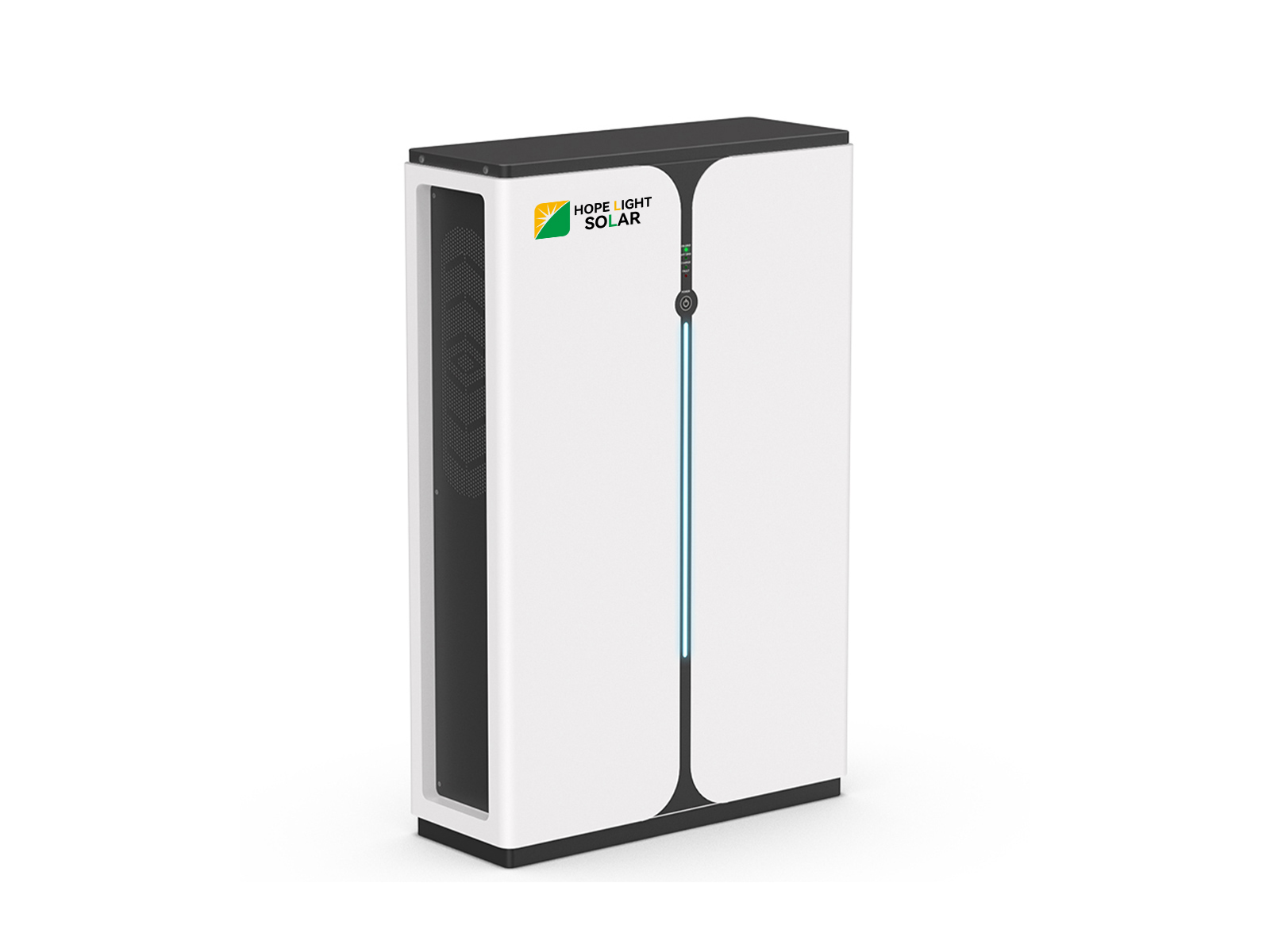

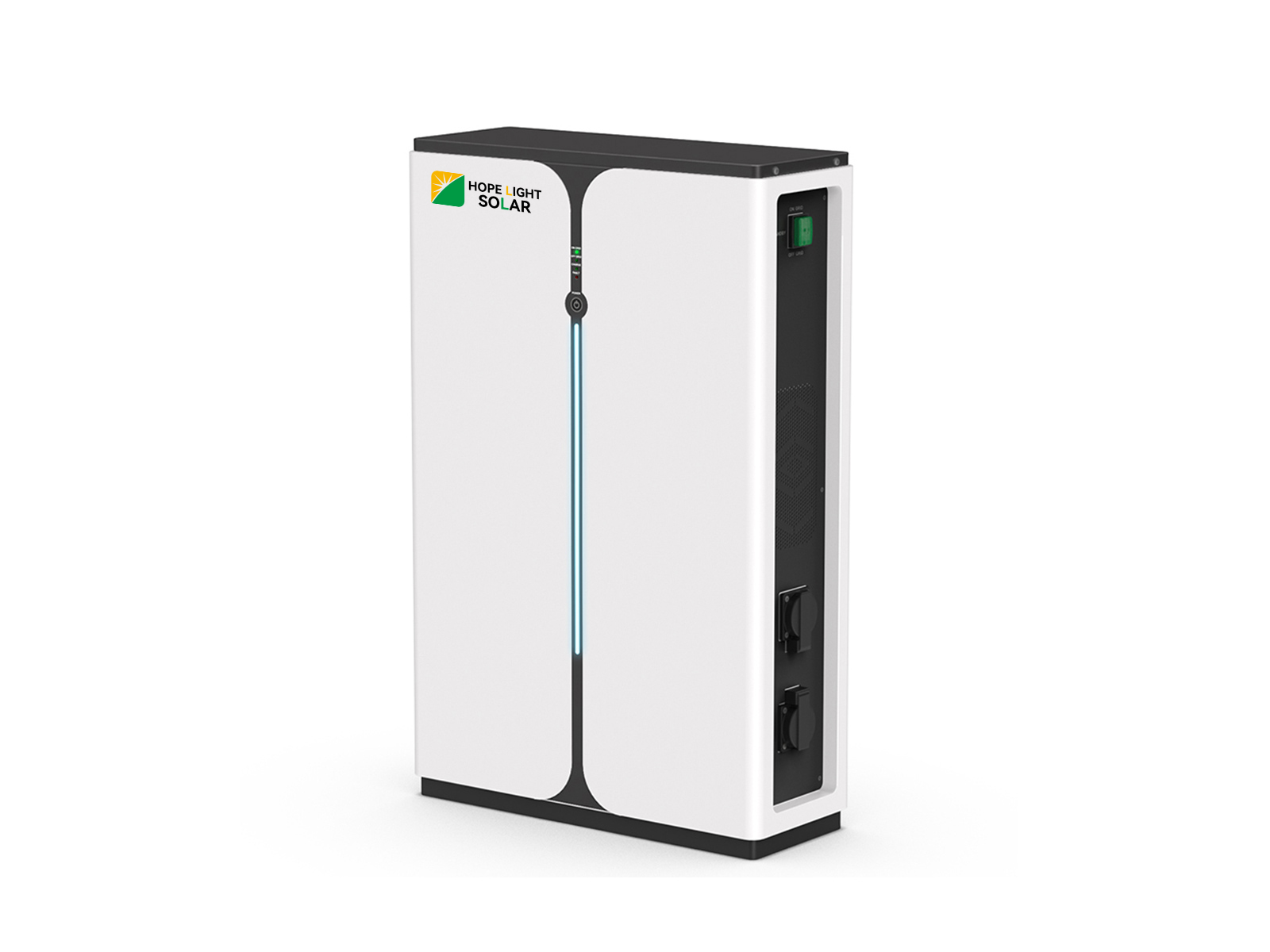

1kw-3kw All in one kit solar battery storage ESS

All in One Kit

Power Range: 1.5KW-3.0KW

Smart WIFI monitor,  install within 30S,  user friendly.
10+ years life design, 6000 Cycles.
Compatible with different brand of existing micro inverters.
PV input 25~60Vdc, fits for different types of solar panels.
Workable in harsh environment (-10℃~+50℃).
Auto heating system in low temp(0℃) .
Timing function supports user in setting to the charge/discharge time.





SPECIFICATION

MESS 1.5KWh

MESS 3KWh

PV Input Features

Commonly used  module power

210W to 650W
+(2 Pieces)

210W to 650W
+(2 Pieces)

MPPT voltage range

30-60Vdc

30-60Vdc

Start-up voltage

25Vdc

25Vdc

Maximum input current

26A

26A

Maximum in put short
circuit current

32A

32A

DC Output Features

DC output current

32A

32A

Output voltage range

25.2-32.4Vdc

25.2-32.4Vdc

Timer setting

the Timer DC Output time can be set through the mobile APP

Lithium Battery Features

Total Energy

1497Wh

2995Wh

Usable Energy
(90%DOD)

1347Wh

2695Wh

Normal Battery Voltage

28.8Vdc

28.8Vdc

Typical Capacity

52Ah

104Ah

Max. Charge Current

26A

Max. Discharge Current

32A

Operation Voltage Range

25.2-32.4Vdc

Operation Temperature

-10℃~+50℃

Charging Heating

when Temp. lower than 0°C

Function

Low temperature charging heating function will start,battery pack will running between 0~5(optional)

Protection

Protection

Over charge protection, Over discharge protection,Solar reverse polarity protection,Over temperature protection,Low temperature charging protection

IP Grade

IP54

Other Features

Display method

LED RGB

Display subtance

PV status, Battery status,DC Output status, Alarm status

WiFi subtance

PV status, Battery status,DC Output status, Alarm status,Timing setting Function

Accessory

PVcable

With 5M PV MC4 extension cable X 4;
With 1M PV MC4 extension cableX4

Ambient

Noise(dB)

<45dB(1 meter)

Working Temperature

-10℃~+50℃

Humidity

0~95%(no condensation)

Sea Level(m)

≤4000

Dimension





L×W×T(products size) mm

L744*W420*H160mm

L744*W420*H160mm

L×W×T(package size) mm

L799*W490*H275mm
(UN carton)

L799*W490*H275mm
(UN carton)

Weight(NW Kg)

30.3Kg

40.5Kg

Weight(GW Kg)

36.0Kg

46.2kg
